EasyDP®| Dynamic Positioning System

CERTIFIED DYNAMIC POSITIONING CONTROL SYSTEM FOR COMPLEX MARINE OPERATIONS

All included solution

Complete integrated DP system including embedded software, hardware, and navigation sensors.

Tailor-Made & Adaptable

Complete standard system or fully adaptable to your specific uses and propulsion types. New modes & functions are developed according to your expectations and needs.

Certified & Cyber-Secured

Bureau Veritas certified DP1/DP2, compliant with all classification societies (BV, DNV-GL, Lloyd’s Register, ABS…). Fully compliant with IACS UR E27 cyber-resilience standard.

EasyDP^® DP SYSTEM – DESIGNED FOR ALL VESSEL TYPES

EasyDP®System is a certified redundant Dynamic Positioning Control System (IMO Class DPS-1 and DPS-2) with integrated Joystick Control System and wheel mark Track Control System (TCS).

The DP system is suited for all types of vessels, propulsions, sensors and applications (cruise, AHTS, OSV, Oil & Gaz, Yachts, jack-ups, multi-purpose, cable laying, military).

This system results from more than 35 years of expertise in hydrodynamics and control of marine systems, and more than 150 systems at sea.

Systems at Sea

150

Years of Experience

Trained DP Operator

100

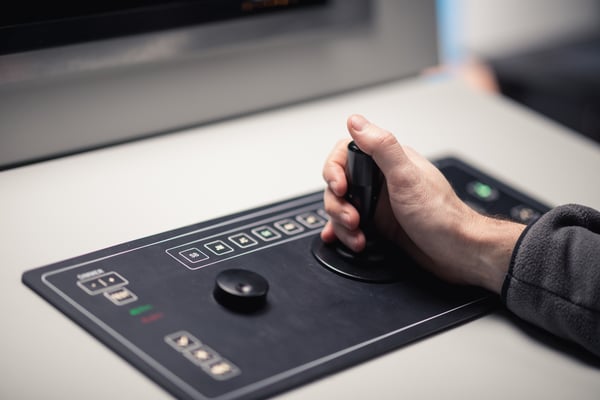

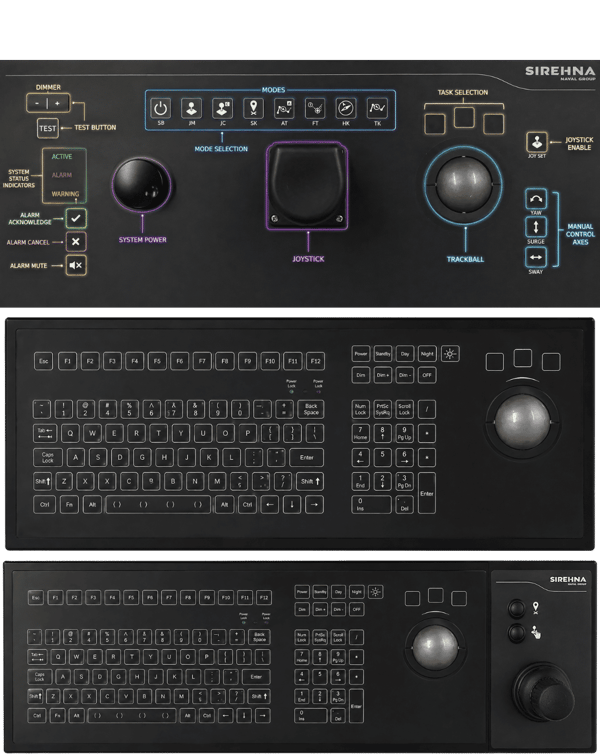

JOYSTICK CONTROL

Sending coordinated orders to the entire set of thrusters through a 3-axis Joystick
Keeping heading and position with precision

STATION KEEPING

Allowing the ship to keep position and heading as specified by the captain
Automatic mode with adjustable functions

AUTO TRACK

Driving the ship through specified waypoints with accuracy
Adjustable speed

AUTO AREA

Keeping your vessel in a definite watch circle
Noise and vibration reduction, low fuel consumption & green house gas emissions

ECONOMIC POSITION KEEPING [PK]

DP system maintains the vessel position as specified by the operator within the operational limits of the system, considering the effect of the environment (wind, waves, and current). The system automatically updates the heading according to the Economic Heading (if available).

Automatic wind compensation (wind feed forward)
Selection of the speed of rotation and speed of translation and acceleration
Hold the current position function
Economic heading function

FOLLOW TARGET

Automatically follows a moving target while maintaining a predefined relative position
Continuously maintains a safe distance and bearing, automatically compensating for wind, waves, and current

ANCHOR MODE

Keeping constant heading while the vessel is anchored
Taking the optimized heading position

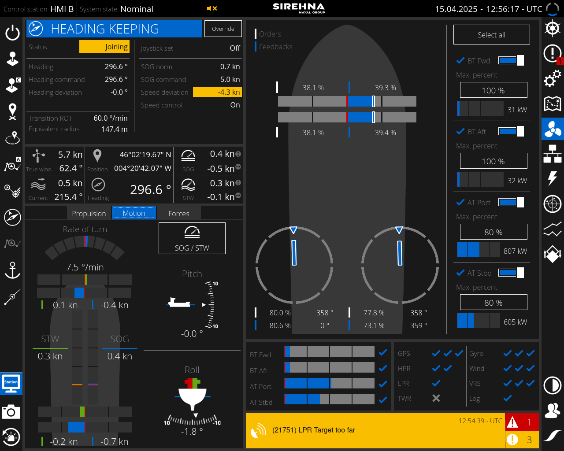

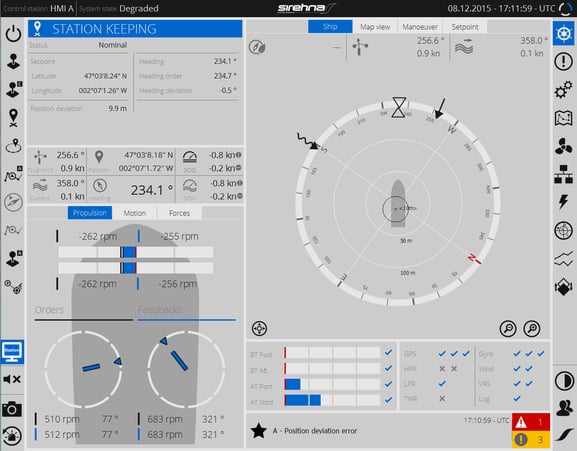

TOUCH SCREEN & HMI

The operator can control and supervise EasyDP^® DP System from the HMI. The display layout has been designed with respect of ergonomic principles and maritime standards. The HMI automatically adapts to display ratio (4/3, 16/9 …) but in standard the system is delivered with a 19” touch screen:

• 19’’ / 48 cm Touch Screen with 1280x1024 resolution

• Dimming control function

• Dimension standard: 429 x 406 x 75 mm – 6.5Kg

• Customizable graphical user interface function

CERTIFICATION & STANDARD

• DYNAPOS AM/AT Type Approval by Bureau Veritas Marine & Offshore/class compliant

• IACS UR E27-Cyber resilience of on-board systems

• EN60945 Marine navigation and radiocommunication

• CE marking & EU directives*

EasyDP^® DP System are cyber secured in design and fully compliant with the IACS UR E27. The software and hardware design of the DPS systems benefits from SIREHNA's work in the naval defense sector, ensuring an advanced level of security in line with the new regulations stemming from the IACS's work.

*(MED-TCS : MED-TCS as define in Directive 2014/90/EU of the European Parliament and of the Council of 23 July 2014 as transposed in the French Regulations and Commission Implementing Regulation (EU) 2025/1533 of 23 July 2025).
