WEATHER RADAR
WR-110/240VAC
At last, performance, transportability, and reliability withing everyone's reach!
The WR-110 is a compact X-band solid-state doppler weather radar operating on 240 VAC.
REF: IMD0367500A
More options:
TERRESTRIAL SYSTEMS
- FEATURES
- ACCESSORIES AND SPARE PARTS
- VIDEOS
- RESOURCES
- SPECIFICATIONS

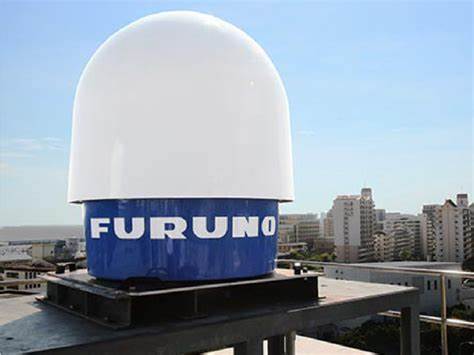

Compact X-band Doppler Weather Radar WR110
The WR-110 is a compact and lightweight weather radar that runs on any standard power outlet. This model is perfect for companies and local communities. It is a smart combination of high performance and ease of installation that offers a wide range of applications and possibilities.

Easy and fast to install
Easy and fast to install, the radar requires no heavy machinery and can be set up by a two-person team. It operates on a standard AC power outlet, similar to those used for household appliances, and can be deployed virtually anywhere without the need for special infrastructure or configurations:
Compact and lightweight (ø 98 cm, 65 kg)
No heavy equipment required for installation
Compatible with regular power outlet

Transportability
Wide range of transportation choices
Pickup, Van, Trailer, Small trucks...
Heading sensor for azimuth adjustment*
Vibration isolator for safe relocation and transport*
MIL-STD-810G test method 514.7 ANNEX C category 4 secured cargo, common carrier (US highway truck vibration exposure) Test1
WR110 case for easy transportation*
*Option

Various data format compatibilities
Various data formats used in major software packages, such as Baron Lynx and Vaisala IRIS Focus, are available.

- Standard Supply
- Option
- Mandatory
- Spares
Name | Reference | Type | Short Description | Price | |
WR110-ATU-9432 | 00004466100 | Standard Supply | ANTENNA UNIT | Please contact your nearest dealer | |
Stock available the
Please contact nearest dealer
|
|||||
WR110-JCU-240 | 00004466800 | Standard Supply | JUNCTION UNIT | Please contact your nearest dealer | |
Stock available the
Please contact nearest dealer
|
|||||
WR110-DPU | 00004467100 | Standard Supply | DATA PROCESSING UNIT | Please contact your nearest dealer | |
Stock available the
Please contact nearest dealer
|
|||||
WR110-MT | 00167620000 | Standard Supply | MAINTENANCE TOOL | Please contact your nearest dealer | |
Stock available the
Please contact nearest dealer
|
|||||
CP84-00600 | 00004467700 | Standard Supply | INSTALLATION MATERIALS | Please contact your nearest dealer | |
Stock available the
Please contact nearest dealer
|
|||||
Name
Reference
Type
Short Description
Price
Name | Reference | Type | Short Description | Price | |
CP84-00300 *5M* | 00004467300 | CABLE | INSTALLATION MATERIALS | Please contact your nearest dealer | |
Stock available the
Please contact nearest dealer
|
|||||
CP84-00310 *10M* | 00004467400 | CABLE | INSTALLATION MATERIALS | Please contact your nearest dealer | |
Stock available the
Please contact nearest dealer
|
|||||
CP84-00320 *15M* | 00004467500 | CABLE | INSTALLATION MATERIALS | Please contact your nearest dealer | |
Stock available the
Please contact nearest dealer
|
|||||
CP84-00330 *20M* | 00004467600 | CABLE | INSTALLATION MATERIALS | Please contact your nearest dealer | |
Stock available the
Please contact nearest dealer
|
|||||
Name
Reference
Type
Short Description
Price
Furuno Solid State Doppler Weather Radar
Download all the necessary documents
High-fidelity wireframes are often used for documenting because they incorporate.

Product Advantages
Easy installation
Reduced operating costs
Transportability
Various software applications are available
Features
Feature | Description | Units | |||
ENVIRONMENT Temperature (IEC60945) | 10 to +50 (Start-up), -20 to +50 (In operation) | °C | |||
Stock available the
Please contact nearest dealer
|
|||||
POWER Input | 100-240, Single phase, 50/60 Hz | V | |||
Stock available the
Please contact nearest dealer
|
|||||
POWER Output | 350 max., 200 typ. | W | |||
Stock available the
Please contact nearest dealer
|
|||||
WEATHER RADAR Antenna Polarization | Single polarization (Horizontal) | ||||
Stock available the
Please contact nearest dealer
|
|||||
WEATHER RADAR Antenna Rotation Speed | 0.5 – 10 | rpm | |||
Stock available the
Please contact nearest dealer
|
|||||
WEATHER RADAR Available Data Formats | Binary, CSV, JPEG, CF/Radial, Opera Odim HDF5, NEXRAD Level 2 | ||||
Stock available the
Please contact nearest dealer
|
|||||
WEATHER RADAR Beam Width | 2.7 | ° | |||
Stock available the
Please contact nearest dealer
|
|||||
WEATHER RADAR Data Correction | Distance and Rain attenuation, Doppler Velocity Folding | ||||
Stock available the
Please contact nearest dealer
|
|||||
WEATHER RADAR Doppler Speed | +/-64 | m/s | |||
Stock available the
Please contact nearest dealer
|
|||||
WEATHER RADAR Maximum Wind Survival Speed | 90 | m/s | |||
Stock available the
Please contact nearest dealer
|
|||||
WEATHER RADAR Observation Range | 70 km max. | ||||
Stock available the
Please contact nearest dealer
|
|||||
WEATHER RADAR Operating Frequency | 9.4 | GHz band | |||
Stock available the
Please contact nearest dealer
|
|||||
WEATHER RADAR Output Parameters | Reflectivity factor Zh (dBZ), Doppler velocity V (m/s), Doppler velocity width W (m/s), Rainfall intensity Rain (mm/h) | ||||
Stock available the
Please contact nearest dealer
|
|||||
WEATHER RADAR Peak Output Power | 100 | W | |||
Stock available the
Please contact nearest dealer
|
|||||
WEATHER RADAR Pulse Repetition Frequency (PRF) | 2000 Hz max. | ||||
Stock available the
Please contact nearest dealer
|
|||||
WEATHER RADAR Pulse Width | 0.5 - 50 | μs | |||
Stock available the
Please contact nearest dealer
|
|||||
WEATHER RADAR Scan Modes | PPI, Volume Scan, Sector PPI, Sector RHI | ||||
Stock available the
Please contact nearest dealer
|
|||||
WEATHER RADAR Transmitter Type | solid-state | ||||
Stock available the
Please contact nearest dealer
|
|||||
WEATHER RADAR Unwanted Signal Removal | Land clutter suppression and Interference Rejection | ||||
Stock available the
Please contact nearest dealer
|
|||||
WEATHER RADAR Vertical Scan Angle | -2 to 182 (adjustable) | ° | |||
Stock available the
Please contact nearest dealer
|
|||||
Feature
Description
Units
Dimension diagrams
Interconnection diagrams
