FISH FINDER
DFF1-UHD
Black Box Sounder 1 kW CHIRP 50±20 & 200±25 kHz for NAVnet TZtouch
REF: IMD03356002

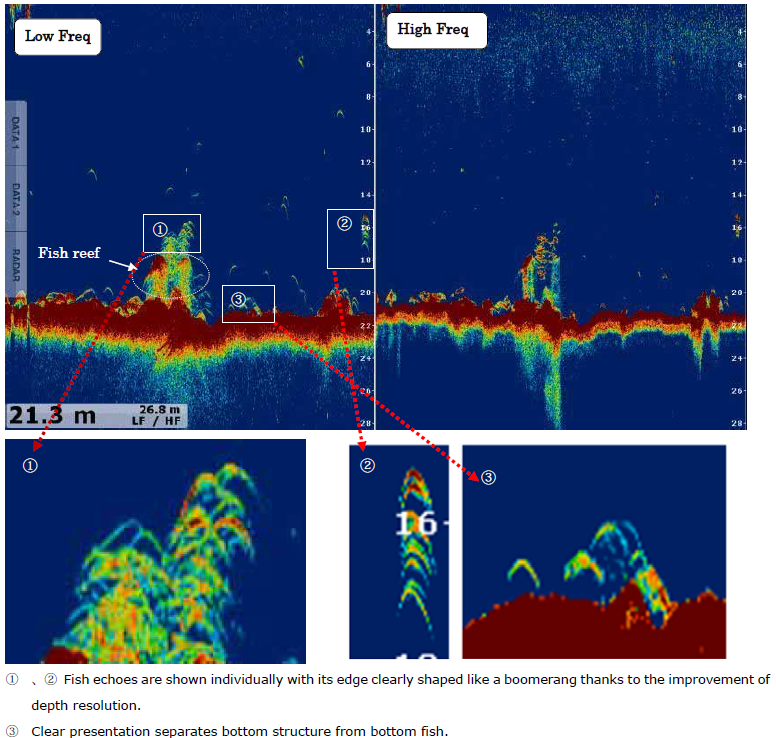

Clear Echo presentation
The TruEcho CHIRP™ technology delivers significant advancements in signal clarity and target definition. In general, the depth resolution of conventional fish finder is better with the shallower range than the deeper range. The depth resolution of the DFF1-UHD is stable at any depth range and the resolution performance is equivalent to that of the 5m range of the conventional models (DFF1/DFF3/BBDS1). Furthermore, the TruEcho CHIRP™ technology gives clear presentation by reducing unwanted noise, which enhances detection performance of small target.
Improved Bottom Discrimination function
Measurement range of the Bottom Discrimination is extended up to 200m, which is twice that of the BBDS1.
In combination with the ACCU-FISH?, you may be able to find a suitable point of target fish, guess a type of fish down below and anchor at an appropriate place.
In combination with the ACCU-FISH?, you may be able to find a suitable point of target fish, guess a type of fish down below and anchor at an appropriate place.
Improved ACCU-FISH function
1) Stable depth resolution gives better peformance of the ACCU-FISH? to separate individual fish at any depth range.
2) Measurement range of the ACCU-FISH? is extended up to 200m, which is twice that of the conventional models (DFF1/DFF3/BBDS1). This will contribute to analyze size of fish close to sea bed.
2) Measurement range of the ACCU-FISH? is extended up to 200m, which is twice that of the conventional models (DFF1/DFF3/BBDS1). This will contribute to analyze size of fish close to sea bed.
Descarga todos los documentos necesarios
Los wireframes de alta fidelidad se utilizan a menudo para la documentación porque incorporan.
Ventajas del producto
- Clear Echo presentation
- Improved ACCU-FISH function
- Improved Bottom Discrimination function
Características
Diagramas de interconexión
