REMOTE DISPLAY
RD-20
High-visibility for optimal readability in all conditions!
The Furuno RD-20 is a compact, high-visibility red LED remote display, IMO-compliant, designed to show clear and accurate NMEA0183 navigation data, with the ability to connect multiple units via daisy chain and centralized brightness control for optimal readability in all conditions.
REF: IMD03043001
RD-20
Compact LED Display

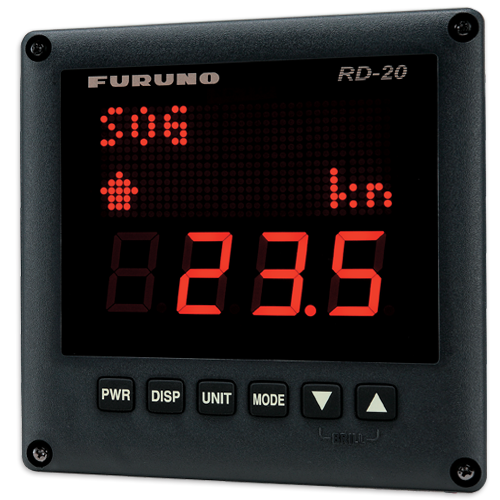

The RD-20 is a versatile remote display unit designed to present a wide range of data from onboard sensors. Featuring a bright red LED panel, it delivers clear and easy-to-read alphanumeric data for enhanced visibility.
Up to 10 RD-20 units can be seamlessly connected using a daisy chain cable, allowing for efficient data distribution. Additionally, the display brightness of all connected units can be centrally adjusted via a single dimmer controller, ensuring optimal visibility in any lighting condition.
RD-20 data that can be displayed
Ship Speed: kt, km/h, m/s
Heading (HDG): deg
Course (COG): deg
Actual/Ordered Rudder Angle: deg
Depth: m, ft, fm
Total Distance: mn, km
Additional data that can be displayed
Trip Distance: mn, km
Water Temperature: C, F
Rate of Turn (ROT): deg/min
Wind Direction/Speed: deg, kt, km/h, m/s, mph
Engine Revolutions: rpm
Propeller Pitch: %
Shaft Revolutions: rpm
Download all the necessary documents
High-fidelity wireframes are often used for documenting because they incorporate.
Product Advantages
High-contrast 8.4-inch color LCD
Digital/graph/analog/ display available
Display orientation of up to 4-way split screen
Viewable under the direct sunlight at wing console
Adjustable display background color for use in both daytime and night time.
Up to 10 display can be connected with a daisy chain cable.
Display brilliance can be collectively controlled from one dimmer controller under the daisy chain connection.
Night mode available
Features
In the box
1 x RD-20-E, remote display unit
1 x hard cover 26-004-1202
1 x standard installation materials and spare parts
Note: bracket assembly is not included in standard set
