AUTOPILOT/HEADING SENSOR
NAVpilot-1000
HCS (Heading Control System) type-approved Autopilot!

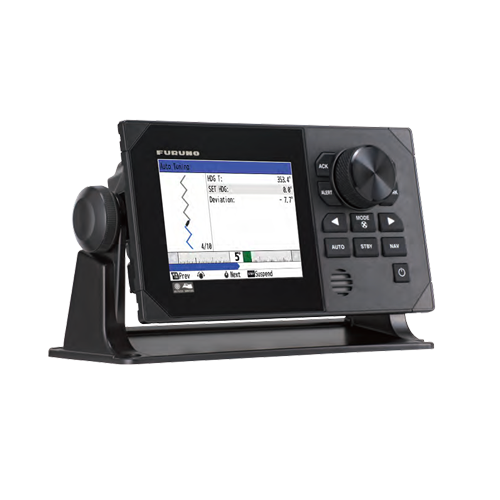

The NAVpilot-1000 is a HCS (Heading Control System) type-approved autopilot with a 5.7"color LCD, designed for commercial vessels under 100 m in length and 10,000 GT (IMO-compliant).
REF: IMD034380AA

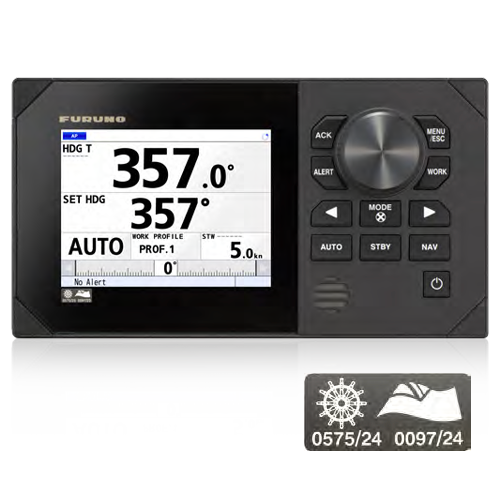

HCS type-Approved
NAVpilot-1000 received the type approval certification for the Heading Control System (HCS) and heading control system for high-speed craft. The type approval certifies that the product meets specific safety, quality, and reliability standards required for the international marine industry.
NAVpilot for larger vessels
Steering Straight with AUTO Mode
The NAVpilot-1000 takes the helm with an advanced steering algorithm that is designed for larger vessels. Specially designed features, like turn Mode, ensure that you make smooth turns with confidence.
Work Profiles: When vessels are operated on a daily basis, sea conditions vary depending on weather or locations. In addition, preferences on how-to-steer vary depending on operators. The NAVpilot-1000 can save a total of six (6) patterns of work profiles. Parameters set in auto tuning or manual adjustment can be assigned to each profile. Simply select one of the suitable profiles for the day, location or operator.

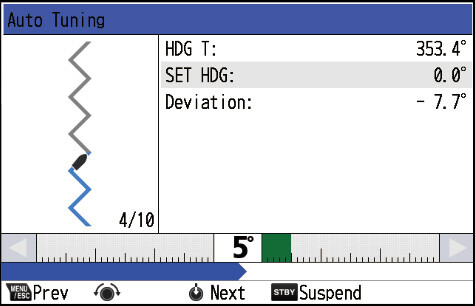

Auto tuning: before navigating with the NAVpilot-1000, auto tuning helps to adjust control parameters. While auto tuning, the vessel will run in zig-zag towards the preset heading and automatically adjust rudder gain, counter rudder, and rate of turn to match the vessel characteristics.
Note: The NAVpilot-1000 is designed for use on vessels of 100 m or smaller.
Easily Follow Routes with NAV Mode
The NAVpilot-1000 helps steer vessels on a monitored or activated route with NAV mode*.
Interconnect with multifunction display: The NAVpilot-1000 can be connected to Furuno’s NavNet TZtouch series** via NMEA2000. AUTO and NAV modes can be activated from the multifunction display screen and adjust the set course while navigating.
**TZT10X/13X/16X/22X/24X/BBX: All software versions / TZT9F/12F/16F/19F: Software version 3.56 or later / TZT2BB: Software version 9.56 or later.
*Non-IMO mode only.
Download all the necessary documents
High-fidelity wireframes are often used for documenting because they incorporate.
Product Advantages
The NAVpilot-1000 is an HCS (Heading Control System) type-approved autopilot that can be connected to an analog steering system or a solenoid steering system, which are often used for relatively large vessels.
The NAVpilot-1000 has both IMO and non-IMO modes depending on the steering type or operational requirements and covers various types of vessels.
Features
In the box
1 x control unit FAP-10001
1 x processor unit FAP-10002
1 x cables for control unit and processor unit
1 x installation materials and spare parts
Interconnection diagrams
