Integrated Bridge Systems
Furuno's integrated bridge control systems ensure unparalleled efficiency and safety for all vessel types.
Our Integrated Bridge Systems

Integrated Bridge Systems
VOYAGER BRIDGE
FURUNO VOYAGER is a next-generation bridge system enhancing maritime operations with intuitive interfaces and integrated sensor data for improved efficiency..
FURUNO VOYAGER Bridge System's Advanced Capabilities
FURUNO VOYAGER, a next-generation bridge system, has been crafted using our extensive expertise in sensor devices, network integration, and software development. The FURUNO VOYAGER bridge system provides multifunction workstations with seamless displays of Radar/Chart Radar, ECDIS, Conning, and Alert Management System data. It features a completely new and intuitive user interface, developed in strict accordance with the latest safety and navigation standards.
The total network sensor integration enhances situational awareness for mariners. A straightforward display presentation simplifies and streamlines navigational tasks. Common duties such as route planning, navigation status monitoring, log-keeping, alarm awareness, and day-to-day chart management are facilitated by a common workstation layout and redundancy of display and control. Watchstanders benefit from a reduced workload and significant freedom to move around the bridge, with all necessary information accessible in various displays and locations.
Key FEATUREs of furuno voyager

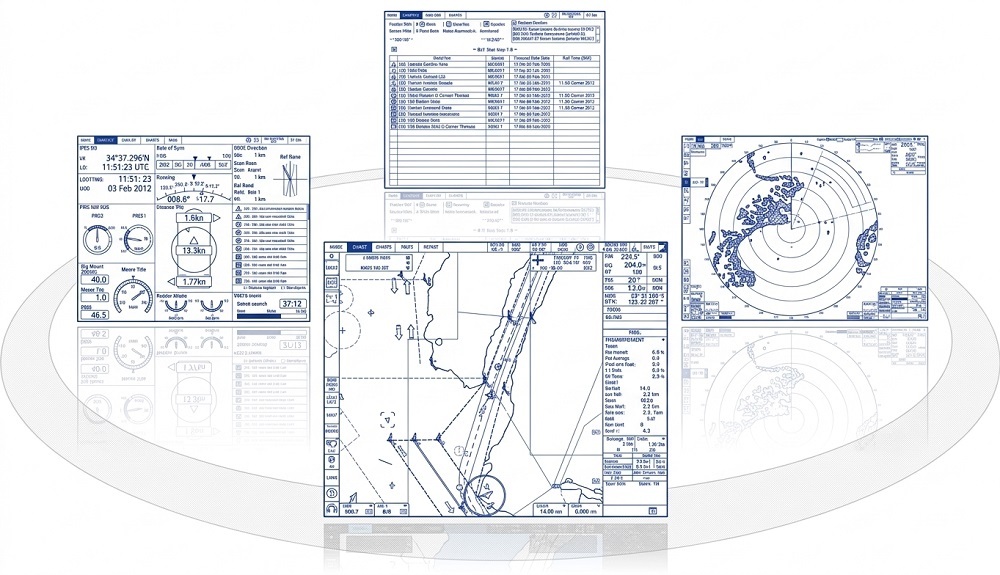

Multifunction display (MFD) capability
FURUNO VOYAGER offers workstations that combine flexibility and redundancy. Users may easily select ECDIS, Radar/Chart Radar, Conning display or Alert Management System at any multifunction display.

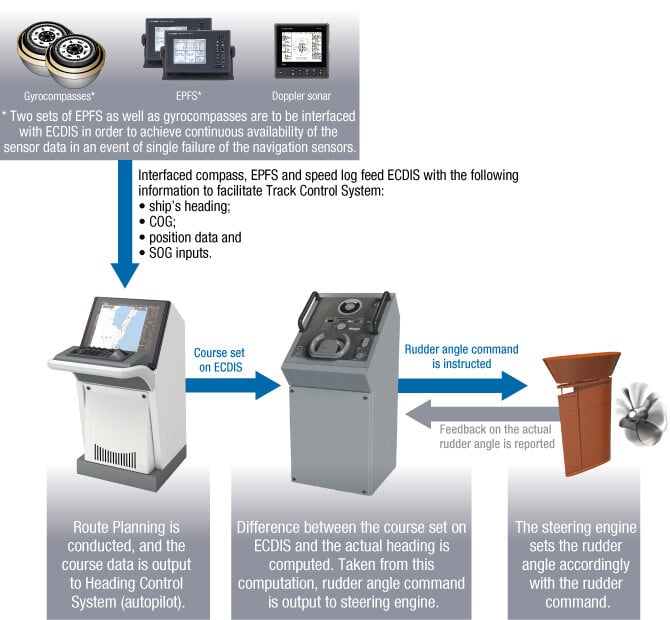

Track Control System permits automatic steering along the set route
FURUNO VOYAGER features Track Control System through integration of ECDIS and autopilot. This enables the vessel to keep on the plotted route automatically with minimum intervention from the navigator.
New user interface delivers straightforward, task-based operation
Stress-free operation with the well-designed control units, contextual menu, task-based user interface by combination of Status bar and InstantAccess bar and InstantAccess knob.
Product Manager at Furuno
"The FURUNO VOYAGER bridge system represents a significant leap forward in maritime technology, offering unparalleled integration and intuitive operation that enhances both safety and efficiency at sea."

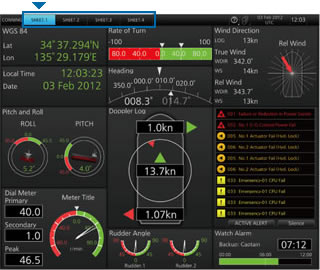

Alert Management System mode
The FURUNO VOYAGER system is designed to enhance maritime safety and efficiency by integrating a Track Control System with ECDIS and autopilot. This integration allows vessels to maintain their course with minimal navigator input. Key features include adaptable steering control, comprehensive route planning via ECDIS, and improved position accuracy through a robust data validation process. Additionally, the system proactively alerts operators to navigational hazards and warnings, ensuring the vessel's safety.

The Alert Management System
The Alert Management System complies with MSC.302(87) Performance Standards for Crisis Alert Management.

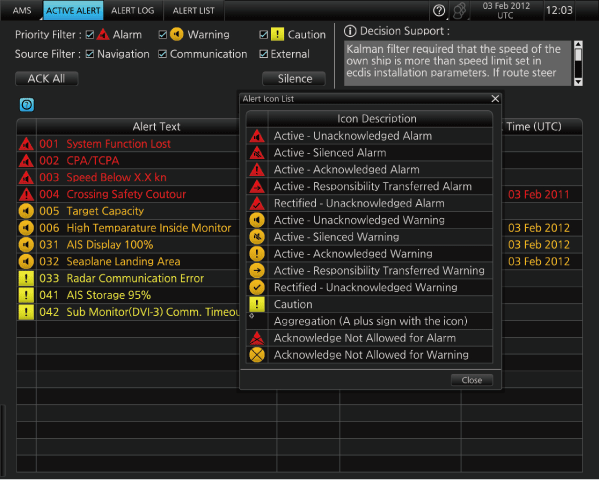

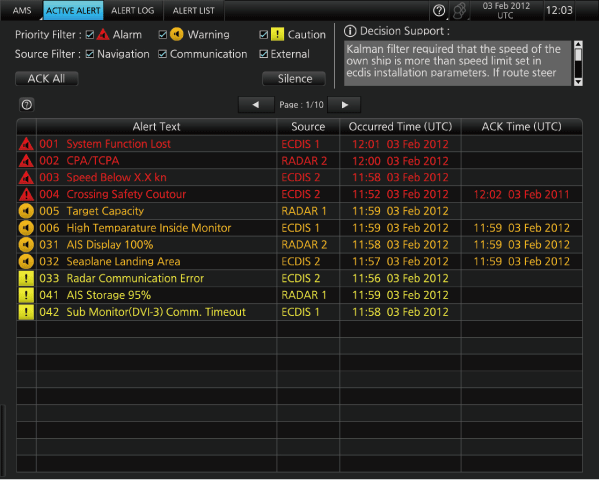

Active Alert
List of alerts currently active can be viewed. By clicking on the icon in the ACTIVE ALERT page, the list of icons used in the Alert Management System and their descriptions can be shown as a pop-up window.

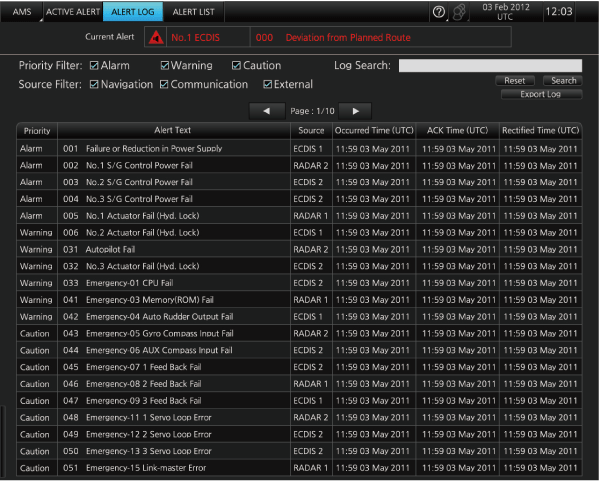

Alert Log
Alert history can be viewed in chronological order. The source of alerts, and the date and time each alert was raised, acknowledged and rectified are shown.

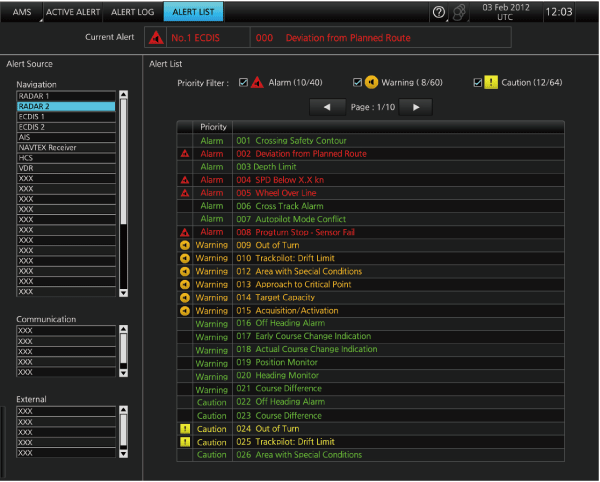

Alert List
List of alerts available for each alert source can be viewed.
Track Control System permits automatic steering along the set route
The FURUNO VOYAGER system is designed to enhance maritime safety and efficiency by integrating a Track Control System with ECDIS and autopilot. This integration allows vessels to maintain their course with minimal navigator input. Key features include adaptable steering control, comprehensive route planning via ECDIS, and improved position accuracy through a robust data validation process. Additionally, the system proactively alerts operators to navigational hazards and warnings, ensuring the vessel's safety.

NEW USER INTERFACE DELIVERS STRAIGHTFORWARD, TASK-BASED OPERATION

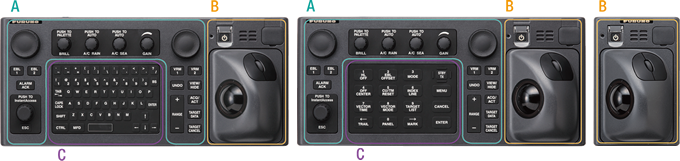

Stress-free operation with the well-designed control units
A - Common key assignment is arranged for the common tasks, such as EBL, VRM controls, on the control units of ECDIS and Radar/Chart Radar.
B - Operation scheme close to a PC with the use of the trackball.
Trackball: to move the cursor and select an object.
Left-click: to perform/con.rm the action related to the selected object.
Right-click: to display the contextual menu while the cursor is on the display area, and to cancel the action done on the selected object.
Scrollwheel: to select menu items.
C- ECDIS Control Unit: Full QWERTY keyboard for easy entry of route, event and waypoint names.
Radar Control Unit: Functions specific to Radar can be carried out.

Contextual menu
The contextual menu offers quick access to all actions relevant to the cursor's position, facilitating easy task execution.

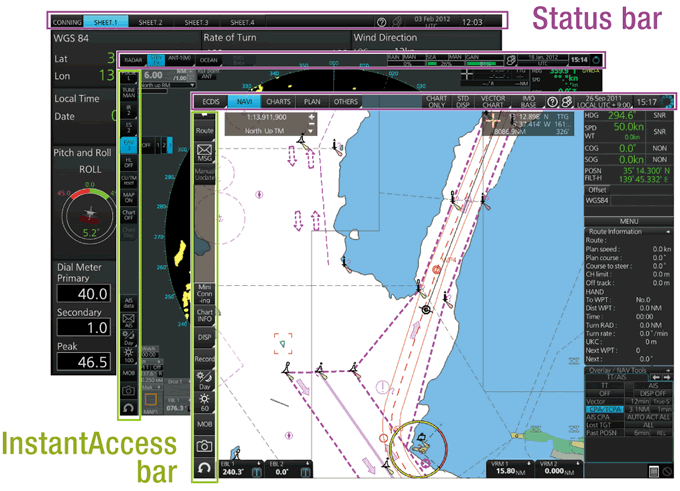

Task-based user interface by combination of Status bar and InstantAccess barTM
The FURUNO VOYAGER interface features a well-organized set of operational tools that simplify navigation tasks. The "Status Bar" at the top of the display clearly shows the operating mode and status, allowing for easy, one-click access to the navigator's main functions. On the left side, the InstantAccess barTM provides direct control over the on-screen presentation's features and attributes. These tools offer a straightforward, task-oriented operation, ensuring that all multi-function display information is always visible. This setup enables the operator to efficiently carry out navigational tasks without navigating complex menus, thereby maintaining situational awareness.

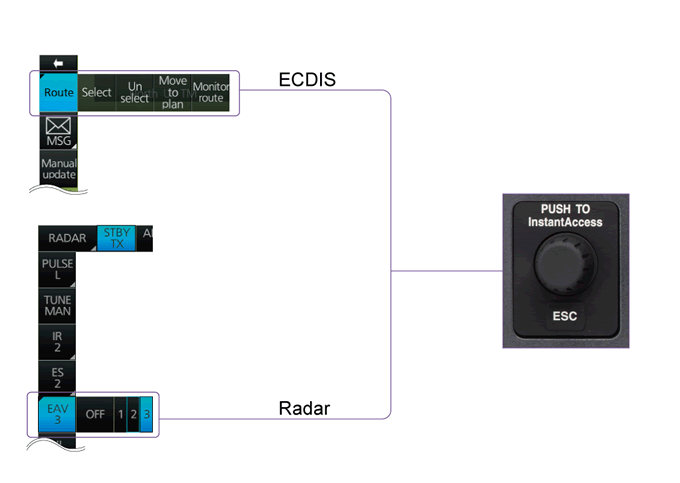

InstantAccess knob
By turning and pressing the InstantAccess knob, the operator can effortlessly navigate to the items in the InstantAccess bar.

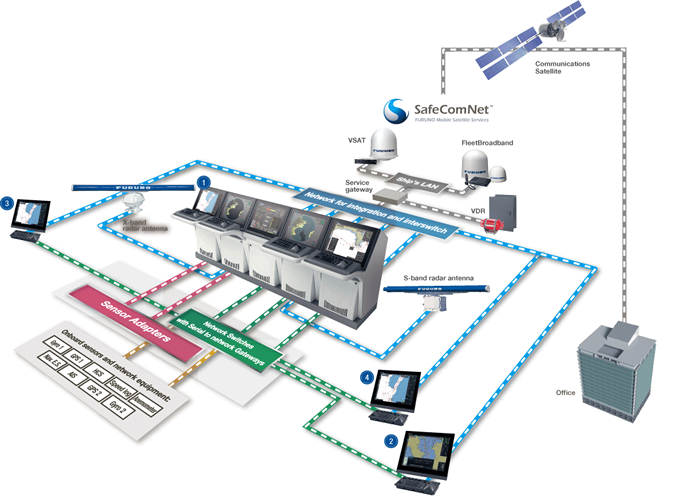

FURUNO VOYAGER onboard navigation network system

The FURUNO VOYAGER integrates two distinct networks that connect all onboard navigation equipment, including multifunction displays and various sensors: the Network for Integration and Interswitch, and the Network for Sensor Integration.
The navigation system features duplicated subsystems to prevent the loss of navigational functions in the event of a single point of failure. Since the multifunction display can operate as a radar, ECDIS, conning information display, and alert management system, navigation tasks can be performed from any interfaced multifunction display, optimizing system availability.
Network for Integration and Interswitch (Gigabit Ethernet) is used to communicate the following data:
Radar interswitching
TT and AIS target data
Harmonization of database (charts, routes, etc.)
Network for Sensor Integration (combination of 100 Base-TX Ethernet and IEC 61162-1/IEC 61162-2) is used to communicate the following data:
Sensor data
Alert information.

Integrated Bridge Systems

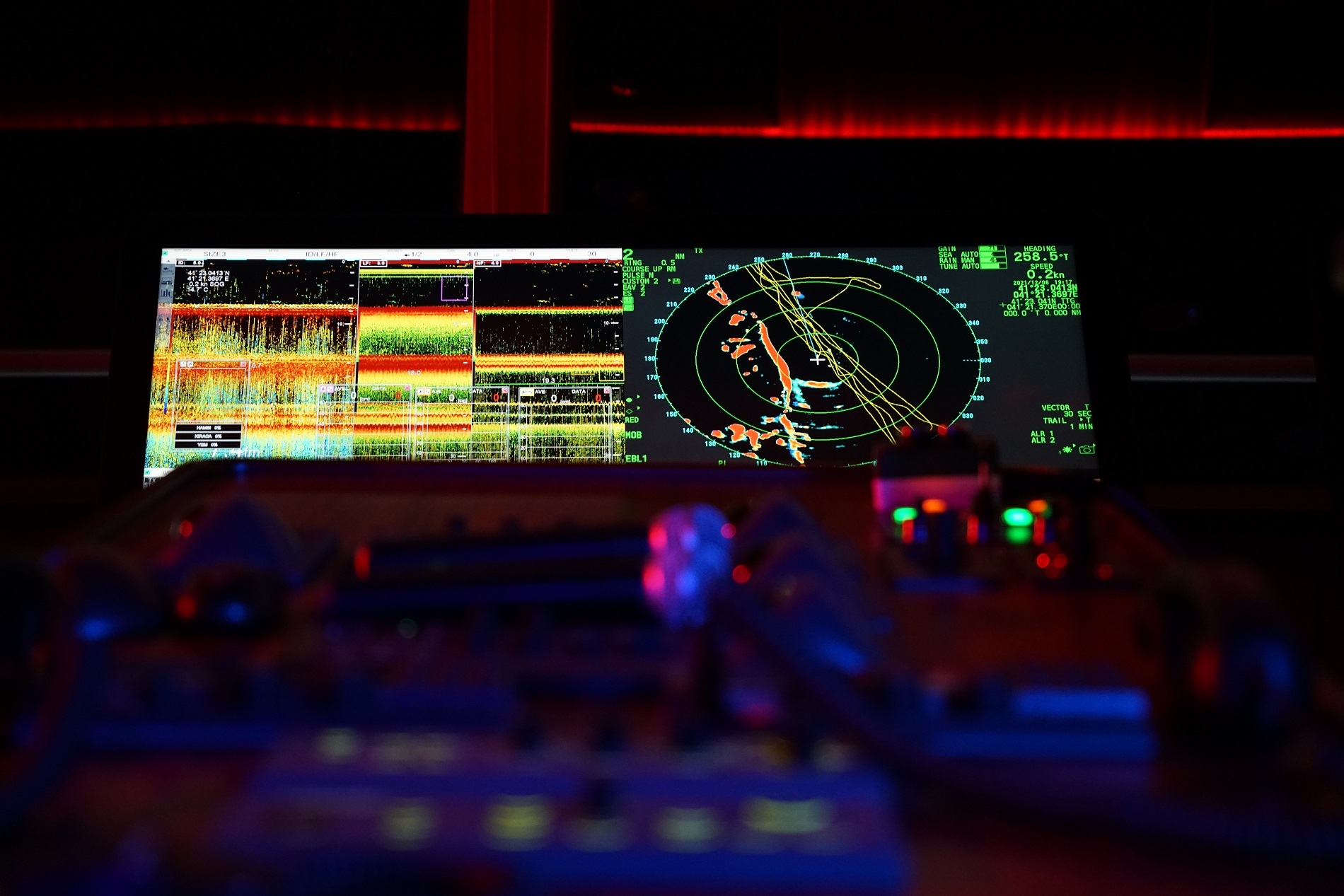

Smart Bridge NXT
A versatile, reliable choice, the Furuno Smart Bridge brings all essential data to a single display system for ultimate control and streamlined operations.

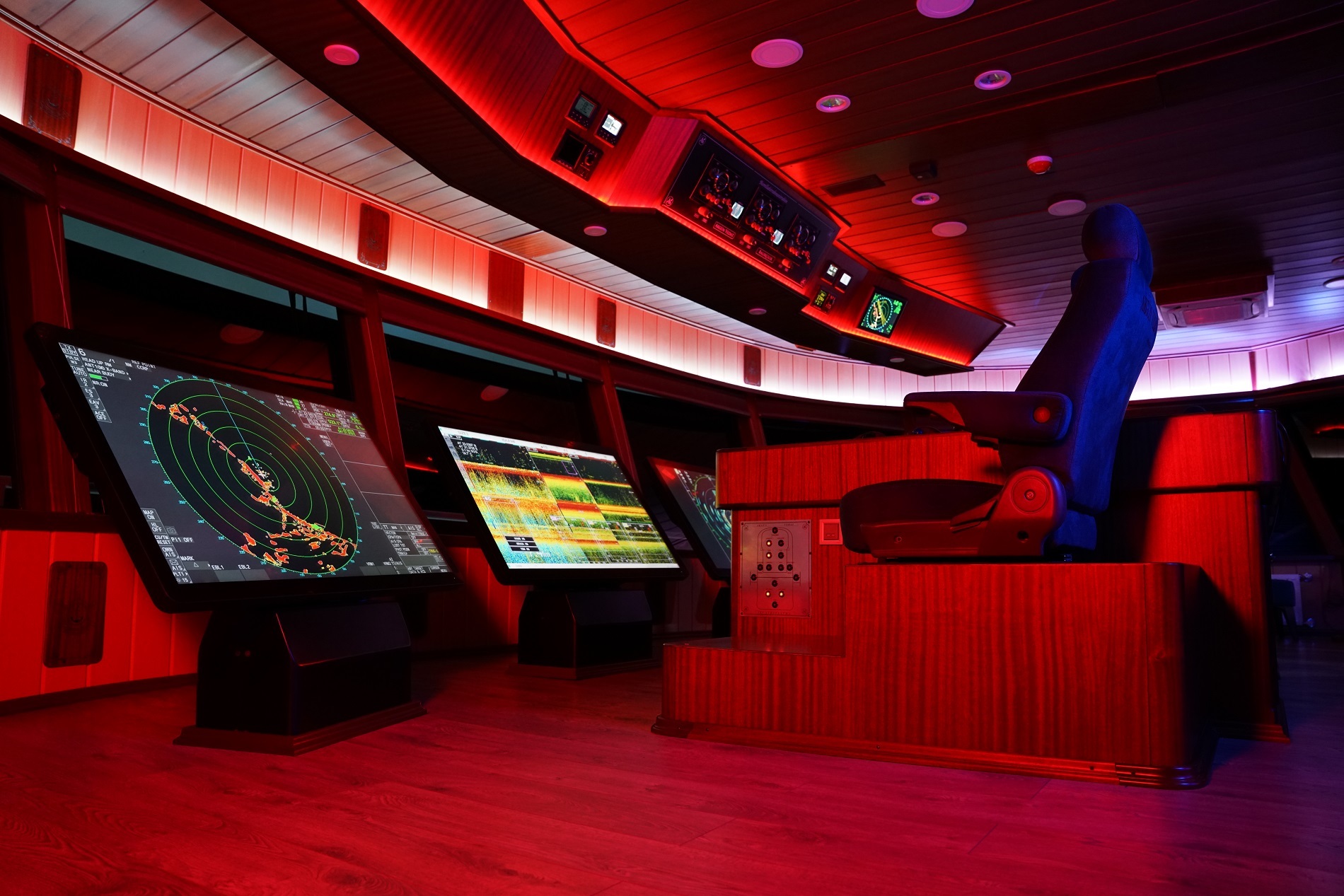

Revolutionizing Vessel Operations with Integrated Control
The Smart Bridge NXT is an advanced bridge control and display system designed to streamline onboard operations. Ideal for commercial vessels, large yachts, fishing vessels, and workboats, the Smart Bridge NXT integrated key data from radar, ECDIS, Chart plotters, sonars, CCTV, alarm systems and much more into a single, high-quality display system.
With easy installation and proven reliablity, the Smart Bridge NXT consolidates essential information into one efficient, adaptable platform, empowering captains and crew with a scalable, user-centric solution.

Key BENEFITS OF FURUNO SMART BRIDGE NXT

Centralized Control
Vessels are equipped with a wide range of systems - navigation, fishfinding, alarms, monitoring, and communications - each with its own display and control interface. This often results in a crowded bridge environment, where equipment competes for space and critical controls may be scatters across multiple stations. The Smart Bridge NXT addresses this by consolidating system control into a single, intuitive platform.
User-Friendly Interface
The main menu allows for easy switching of input sources and adjustments to the display setups. All essential functions can be accessed from within comfortable reach of the primary navigation seat, on a central touchscreen console or tablet. Multiple keyboard/mouse setups can also be connected simultaneously, allowing for parallel operation by, for example, both the skipper and a crew member.
Pre-Set Work Modes
The Smart Bridge NXT offers unlimited user-friendly work modes, allowing you to save custom screen layouts and settings for specific operations like navigation, fish finding, docking, and more.

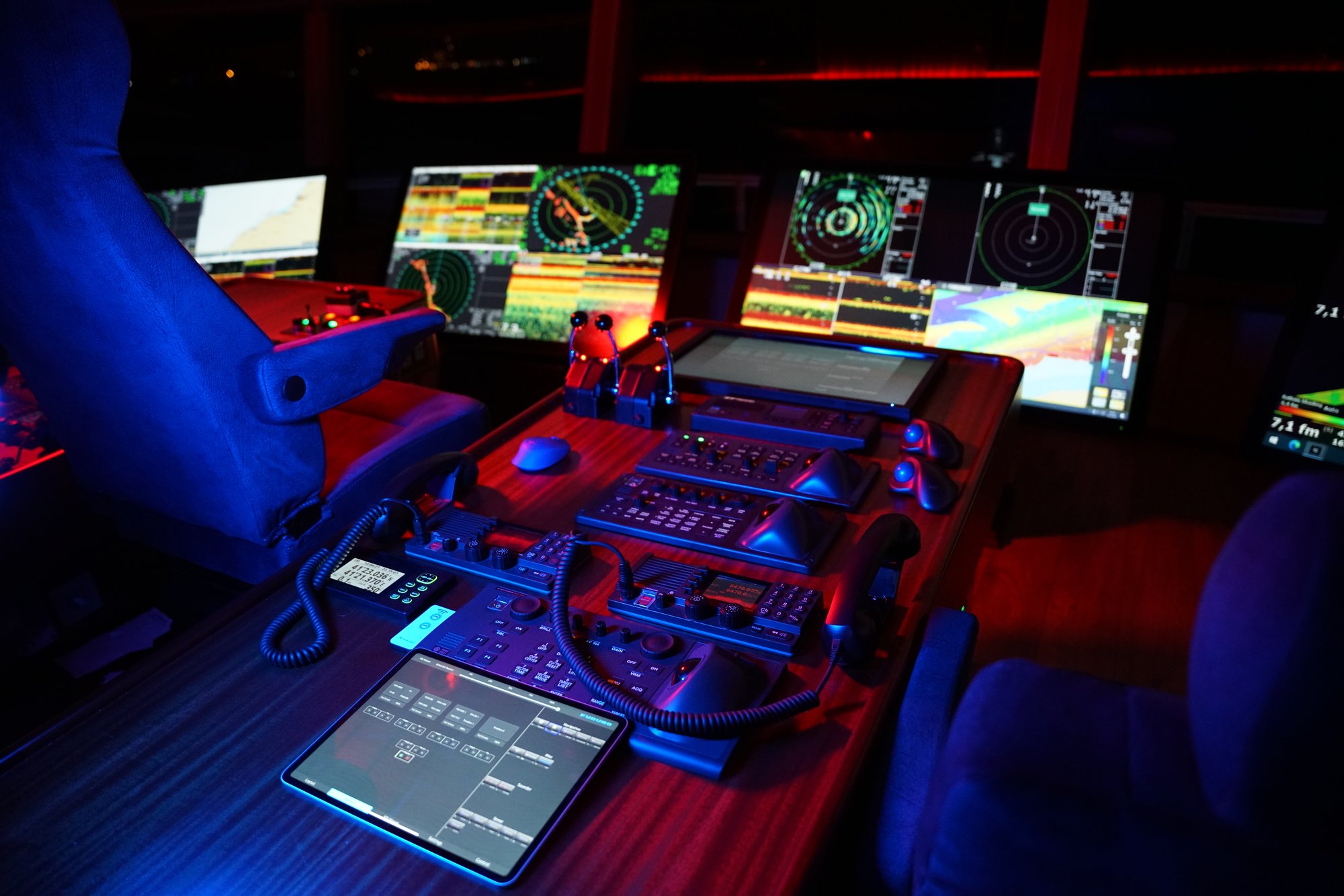

Virtual Keyboard
The Smart Bridge NXT's virtual keyboard function replicated the layout of key hardware controls - such as Furuno radar, ECDIS, echosounder and sonar - making it easy for crew members to switch seamlessly between functions on a touchscreen. This familiarity shortens the learning curve and reduces operations errors, even in high-pressure situations.
Flexible and Scalable Design
Smart Bridge NXT is designed for flexibility and efficiency supporting any number or size of screens. The system can be fully tailored to suit vessels of any size, with fully customizable display quantities, sizes, clients, placements and more. The video sources connected to Smart Bridge NXT can be presented on any size monitor connected to the system, from larger monitors with 4 inputs to smaller monitors with a single input. The client application has been designed to be used on tables, or blackbox/PC systems - opening up the possibility to run the client application on anything from a portable tablet to larger, fixed / installed touch screens. Cyber Secure Smart Bridge NXT is built with advanced cybersecurity at its core. Certified by Bureau Veritas (BV) and fully compliant with IACS UR E27, it offers two-factor authentication, offline TOTP code display, encrypted passwords, and automatic defense against repeated hacking attempts. All actions are logging locally and securely, giving you full visibility and control - without exposing critical data to the internet. BV Certificate number: 81612/A0 BV

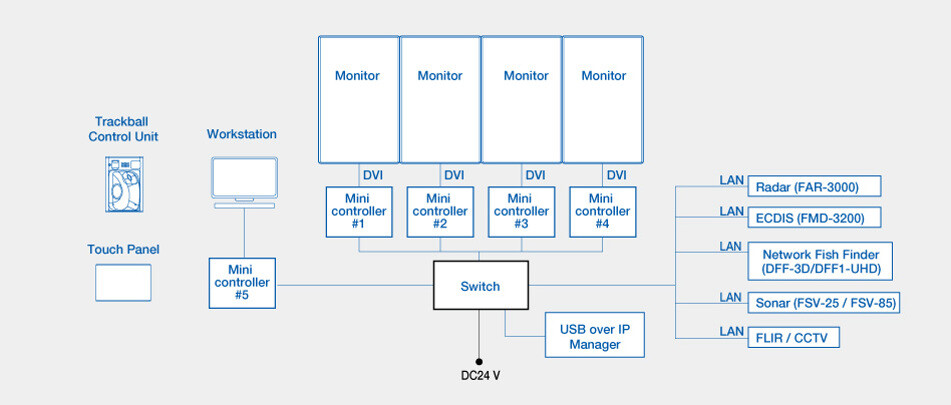

Interconnection Diagram


Integrated Bridge Systems
Integrated Control System
The new Furuno Integrated Control System is an advanced solution designed to enhance the control and management of medium-sized Super Yachts, combining innovation and reliability for a renewed nautical experience.
Key BENEFITS OF FURUNO INTEGRATED CONTROL SYSTEM
Simplified Management of Onboard Operations
The Furuno Integrated Control System centralizes the control of onboard operations, enhancing efficiency and safety for intuitive navigation.
Seamless Switching
Allows seamless switching between different sources directly from the displays, improving safety and minimizing distractions for the operator.
Dynamic Multi-View Display
Offers the ability to change the screen size of a specific source and recall up to five configurable presets, all manageable with a simple double-click of the trackball.

Total Control Onboard
The Furuno Integrated Control System offers centralized control, ease of management, and maximum reliability: it optimizes onboard operations, improving efficiency and ensuring safety and comfort in superyachts.
Advantages of the Furuno Integrated Control
System Complete control
Simplified management of onboard operations
Seamless switching
Dynamic Multi-View display
Intuitive user interface

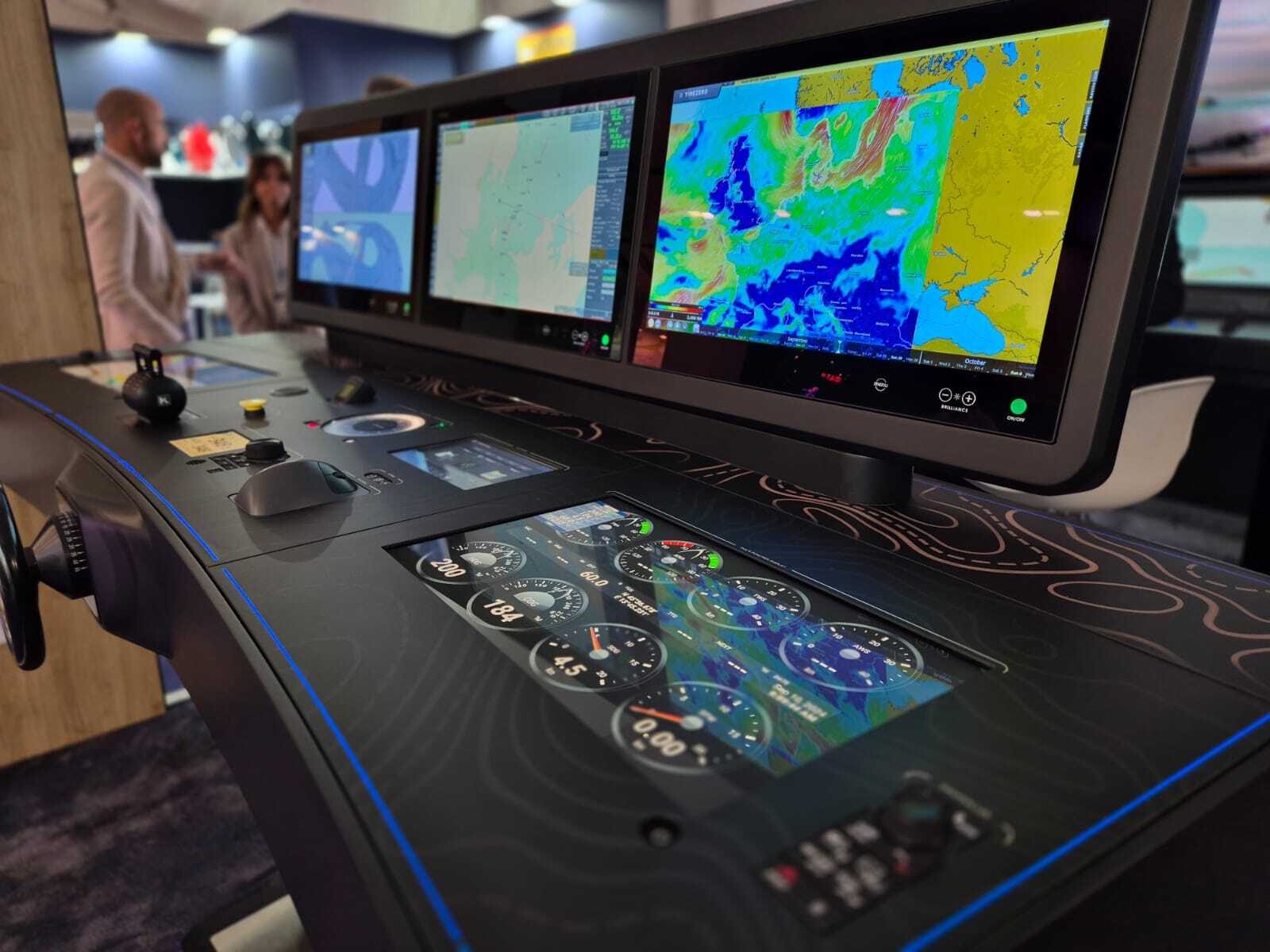

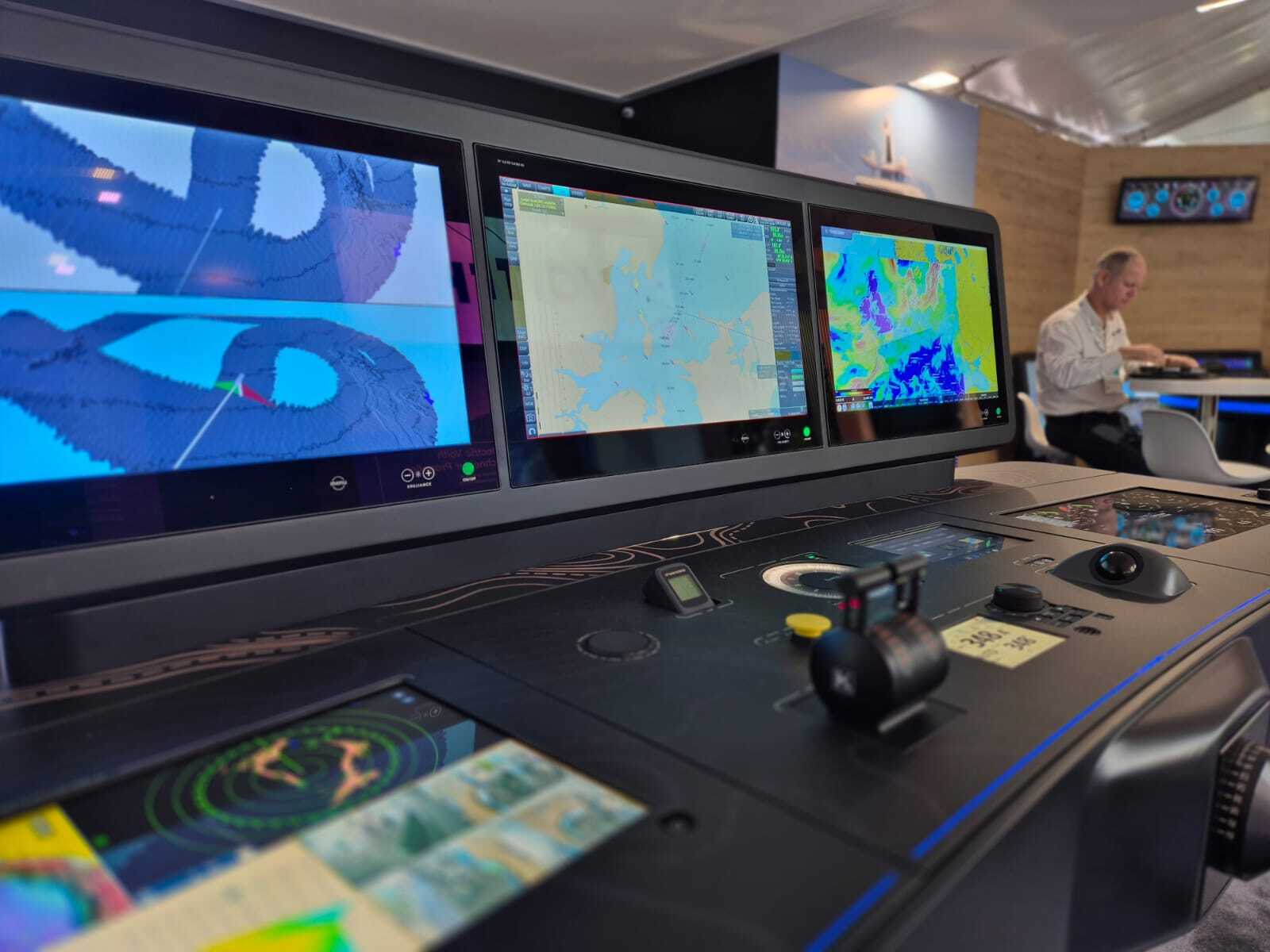

Control Panel and Functionality
The Furuno Integrated Control System is equipped with three 24” Hatteland monitors, a curved operating console with two 22” TZtouchXL Multifunction Displays, and two Remote Control Units MCU006. In the central position, reserved for the operator, are the helm, engine throttles, BNWAS reset button, and the FM8900S marine VHF.
Completing the configuration are a gyro repeater display and the new NAVpilot-1000 autopilot. On the right side, the system integrates a 10” panel PC, a dimmer panel for managing the Hatteland displays, and an RCU030 trackball. The system sources include two TIMEZERO multifunction systems, a Furuno FAR-3000 chart radar, and a FARSOUNDER forward-looking sonar.

Integrated Bridge Systems

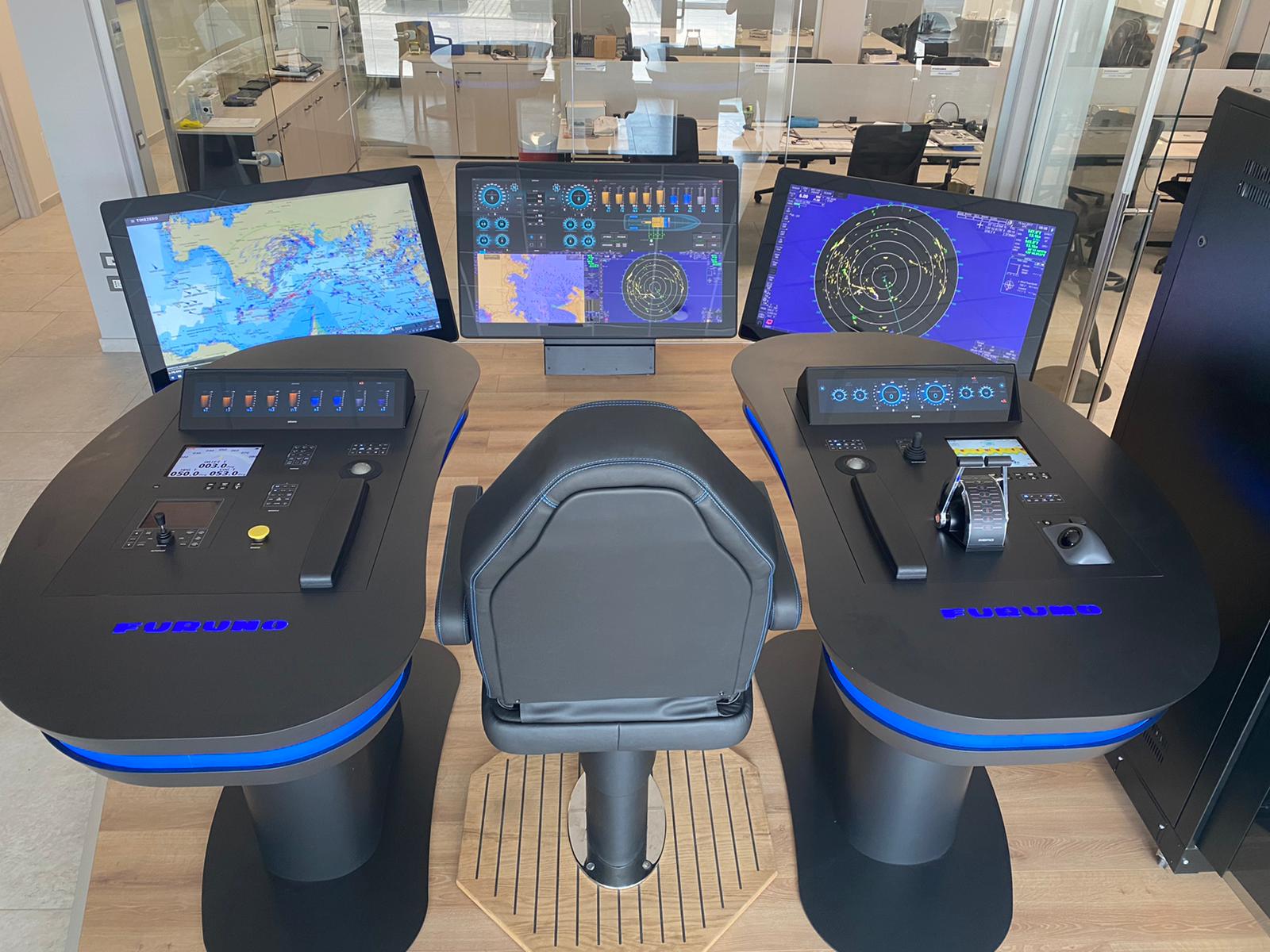

F-Bridge
F-Bridge represents a generation of Furuno consoles designed for commercial yachts over 300GT, offering the utmost in integration and design for an ultra-modern and easy-to-use bridge.
Key BENEFITS OF THE F-BRIDGE
Ergonomic and modular design
The F-Bridge is a unique, versatile, and innovative system based on the walk around bridge principle, which allows free movement around the command bridge, including the helm station and self-standing monitors.
High integration and customization
Furuno offers high integration and customization, allowing users to tailor it to their specific needs.
Versatile and innovative system
It is a versatile and innovative system that adapts to various applications and maritime activities.
Centralized and multifunctional control
The centralized and multifunctional control provides captains with a streamlined and efficient management experience.
Complete automation
Complete automation enhances productivity by minimizing manual intervention and optimizing processes.

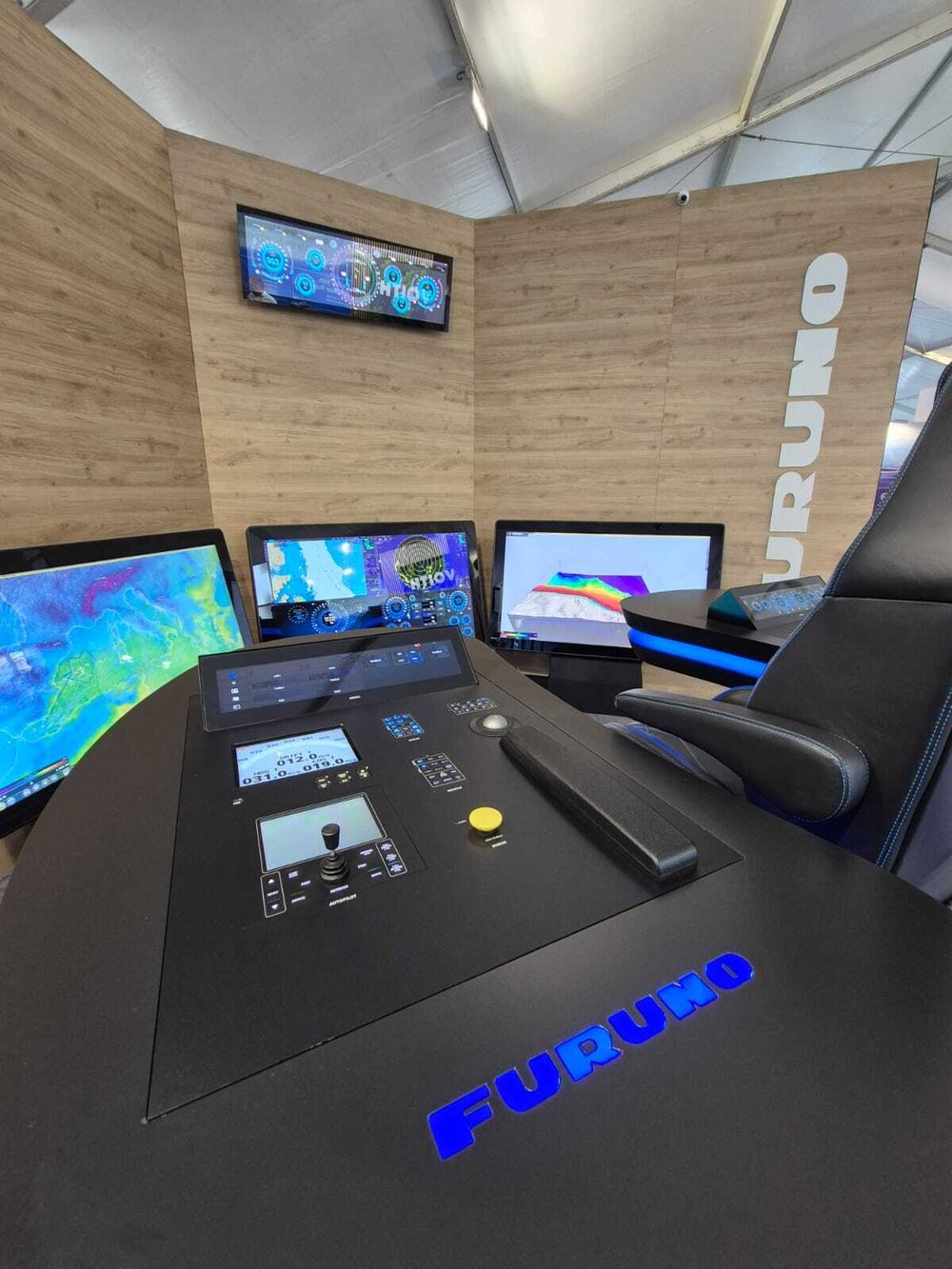

Fully customizable bridge
The F-Bridge offers an ergonomic and fully customizable design, with modular consoles and large 55” Hatteland 4K monitors for clear and multiple data viewing. Navigation and vessel control are centralized thanks to dedicated trackballs, allowing effective control of radar, ECDIS, and other safety and monitoring systems.

Ergonomic design for simple and clear navigation
Composed of modular consoles and large 55” Hatteland 4K monitors, it allows for clear and simultaneous display of various operational and navigation functions, making it ideal for large commercial yachts. The modular configuration also allows for the addition of more pilot seats and monitors, adapting to the specific needs of the user.
Centralized control for intuitive management
Thanks to the “Universal Control” concept, the F-Bridge centralizes the control of radar, ECDIS, CCTV, and other integrated systems into a single interface, managed via customized trackballs. This centralization simplifies equipment management and reduces response times, ensuring smoother and more intuitive operation. The system supports a "walk around" layout, allowing personnel to move freely around the bridge.
Advanced navigation technology and safety at sea
The F-Bridge also incorporates the most advanced Furuno navigation equipment, including X and S band radar, dual GPS system, echo sounder, AIS, and gyrocompass, ensuring maximum safety at sea. The monitors can display up to four sources in Full HD on a single screen, allowing for easy monitoring of all critical information.
F-BRIDGE WALK THROUGH

Integrated Bridge Systems
BlueBridge Display Management™ & Centralized System Operation
BlueBridge™ is a smart display management system that helps reduce clutter on the bridge by centralizing system control and screen usage. By defining operation modes, screens can be shared across multiple systems, giving you the right information, at the right time, in the right place. With intuitive access and optimized screen layout, BlueBridge™ ensures safer navigation and a more efficient working environment.
The BlueBridge™ suite offers a range of solutions for centralized display management and seamless system operation tailored to vessel size, operational needs, and regulatory requirements. As a trusted partner, we are committed to maintaining an open and attentive dialogue to ensure that your vessel’s configuration delivers the right balance of functionality, compliance, and cost-efficiency.
Three scalable models are available:
- Compact – ideal for smaller workboats and service vessels
- Matrix – well suited for vessels where flexibility is a key factor
- Comply – our certified solution for ships subject to regulatory approval
To further enhance bridge layout and visibility, we offer a rugged display console. This floor-mounted alternative to traditional console structures provides both height and tilt adjustments – enabling better screen positioning, improved sightlines for visual inspection, and easier movement on the bridge.
- BlueBridge™ Compact
- BlueBridge™ Comply
- BlueBridge™ Matrix
- Display Console
-
BlueBridge™ Compact streamlines operations on smaller professional vessels such as fishing boats, workboats, and aquaculture service vessels.
A single 8.8" touch panel provides intuitive control of multiple systems across shared Hatteland displays.
By reusing screen surfaces and enabling split views, it offers fast, focused access to critical functions—enhancing both situational awareness and operational efficiency.
-
Easy to use
Supports any combination of Hatteland displays, display sizes and split view presentations
Connect as many sources as display inputs allows
8,8’’ touch control unit for layout and source selection
Both centralized and single display dimming is possible
We can offer remote support
-
- BlueBridge™ Compact
- Key benefits

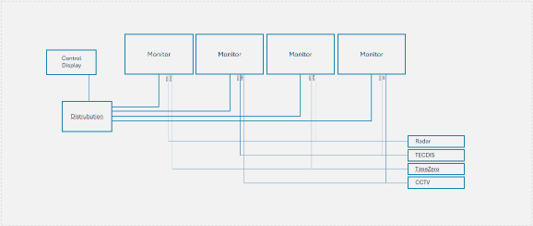

- Interconnection Diagram

BlueBridge™ Compact streamlines operations on smaller professional vessels such as fishing boats, workboats, and aquaculture service vessels.
A single 8.8" touch panel provides intuitive control of multiple systems across shared Hatteland displays.
By reusing screen surfaces and enabling split views, it offers fast, focused access to critical functions—enhancing both situational awareness and operational efficiency.

Easy to use
Supports any combination of Hatteland displays, display sizes and split view presentations
Connect as many sources as display inputs allows
8,8’’ touch control unit for layout and source selection
Both centralized and single display dimming is possible
We can offer remote support

-

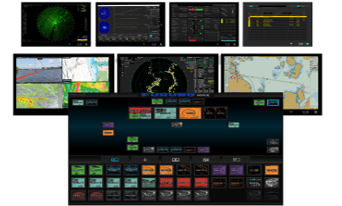

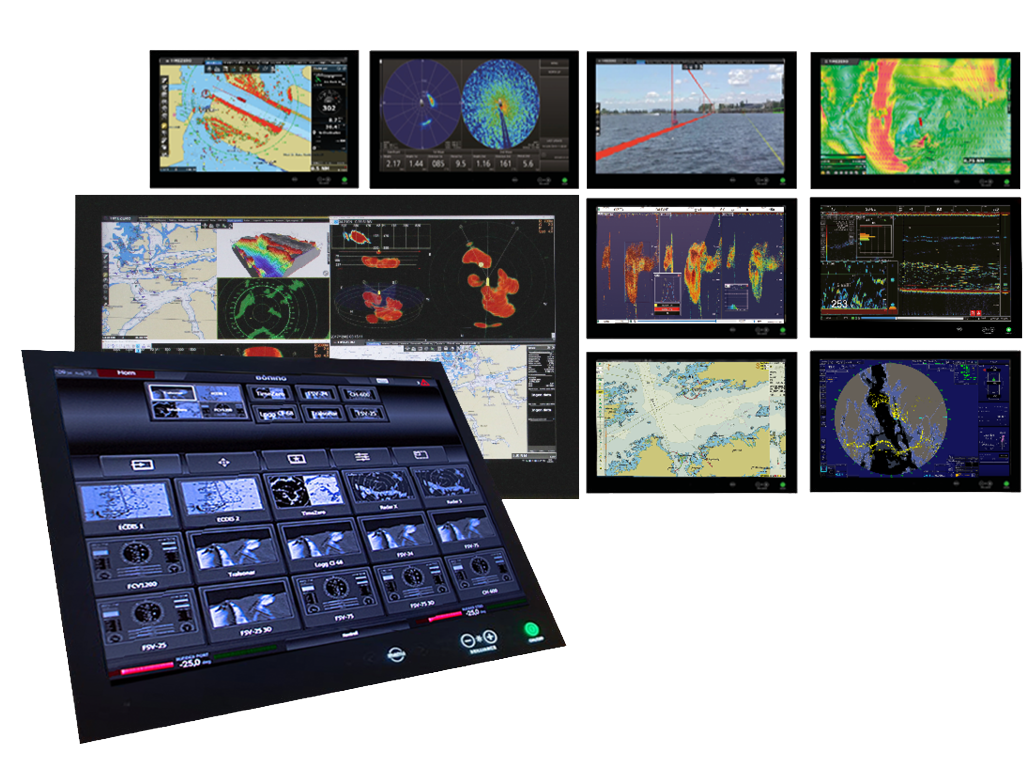

BlueBridge™ Matrix is designed for vessels where flexibility is a key factor. This model is very well suited for larger service vessels and fishing vessels.
It enables smooth, centralized operation of multiple systems via customizable touch panels, with drag-and-drop source selection and centralized, grouped or single display dimming.
Multiple control points can manage shared or separate groups of systems and displays, providing the crew easy access to vital functions – anywhere on board.
-
Easy to use
Supports any combination of displays, display sizes and split view presentation
Scalable to any number of bridge systems
Touch screen control unit of any preferred size with drag-and-drop source selection
One-click access to user-defined source presets for various operational modes
Centralized and seamless operation across all systems
Supports any number of control units with the same or separate display management setups
Centralized, grouped or single display dimming
Remote support
-

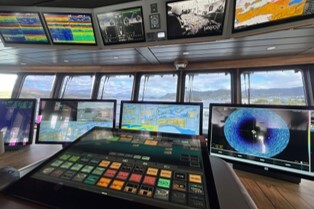

- BlueBridge™ Matrix
- Key benefits

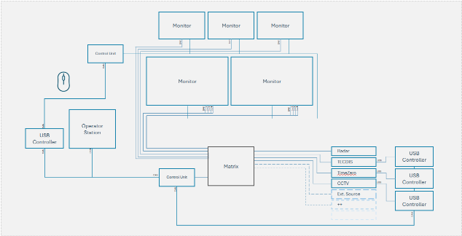

- Interconnection Diagram

BlueBridge™ Matrix is designed for vessels where flexibility is a key factor. This model is very well suited for larger service vessels and fishing vessels.
It enables smooth, centralized operation of multiple systems via customizable touch panels, with drag-and-drop source selection and centralized, grouped or single display dimming.
Multiple control points can manage shared or separate groups of systems and displays, providing the crew easy access to vital functions – anywhere on board.

Easy to use
Supports any combination of displays, display sizes and split view presentation
Scalable to any number of bridge systems
Touch screen control unit of any preferred size with drag-and-drop source selection
One-click access to user-defined source presets for various operational modes
Centralized and seamless operation across all systems
Supports any number of control units with the same or separate display management setups
Centralized, grouped or single display dimming
Remote support

-

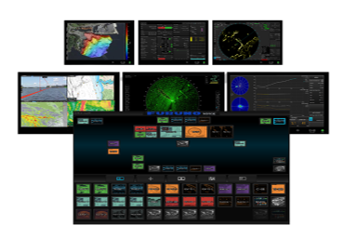

BlueBridge™ Comply is a certified system for managing displays and centralized operation on board IMO vessels.
It meets the requirements of Furuno systems that require type-approved displays and control panels. Centralized, intuitive control of multiple systems is available throughout the vessel, including operation of maritime navigational instruments.
Control panels can also be configured to allow system display while restricting operation, in line with applicable bridge collaboration policies.
-
Approved according to applicable rules and regulations
Supports any combination of displays, display sizes and split view presentations
Scalable to any number of bridge systems
Touch screen control unit of any preferred size with drag-and-drop source selection
One-click access to user-defined source presets for various operational modes
Centralized and seamless operation across all systems
Supports any number of control units with the same or separate display management setups
Centralized, grouped or single display dimming
Remote support
-
- BlueBridge™ Comply
- Key benefits

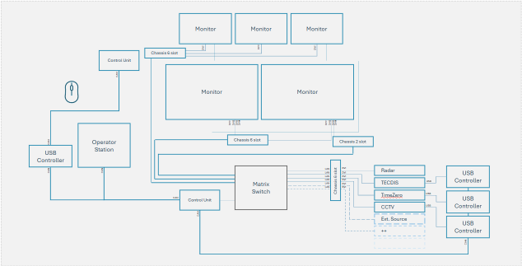

- Interconnection Diagram

BlueBridge™ Comply is a certified system for managing displays and centralized operation on board IMO vessels.
It meets the requirements of Furuno systems that require type-approved displays and control panels. Centralized, intuitive control of multiple systems is available throughout the vessel, including operation of maritime navigational instruments.
Control panels can also be configured to allow system display while restricting operation, in line with applicable bridge collaboration policies.

Approved according to applicable rules and regulations
Supports any combination of displays, display sizes and split view presentations
Scalable to any number of bridge systems
Touch screen control unit of any preferred size with drag-and-drop source selection
One-click access to user-defined source presets for various operational modes
Centralized and seamless operation across all systems
Supports any number of control units with the same or separate display management setups
Centralized, grouped or single display dimming
Remote support

-

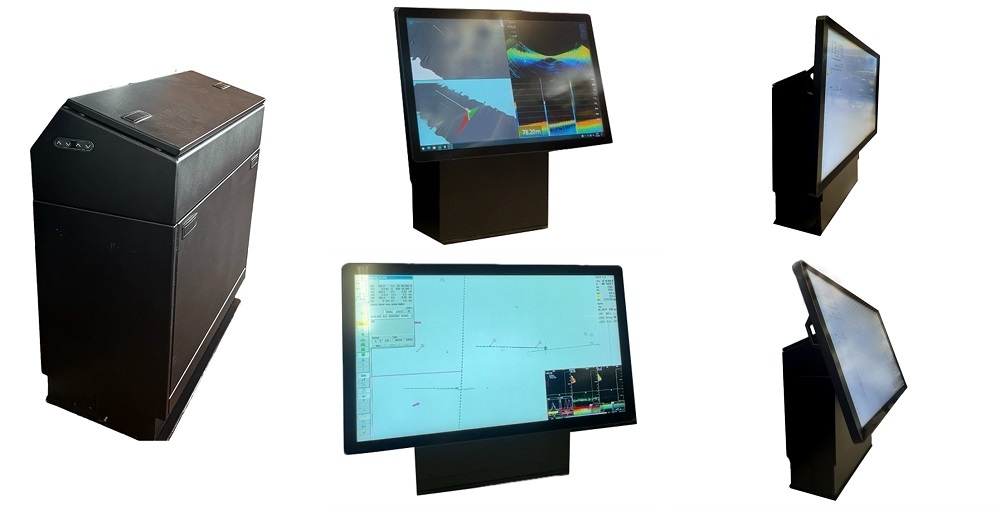

Display Console Our rugged, flexible monitor console is built for harsh marine environments. It addresses limitations of traditional bridge layouts, such as obstructed sightlines for visual inspection and restricted movement caused by large and rigid console structures.
Our console can handle maritime monitors up to 65’’. It offers 40 cm height adjustment and 30° tilt for optimal viewing in challenging light conditions.
-
Rugged console for any display
Possible to mount two displays on one console
40 cm adjustable height
30° adjustable tilt
- Display Console
- Key benefits

Display Console Our rugged, flexible monitor console is built for harsh marine environments. It addresses limitations of traditional bridge layouts, such as obstructed sightlines for visual inspection and restricted movement caused by large and rigid console structures.
Our console can handle maritime monitors up to 65’’. It offers 40 cm height adjustment and 30° tilt for optimal viewing in challenging light conditions.

Rugged console for any display
Possible to mount two displays on one console
40 cm adjustable height
30° adjustable tilt
