Coastal Monitoring Systems
Furuno designs cost-effective solutions for large and small-scale maritime and coastal monitoring use.
Our Coastal Monitoring Systems

Coastal Monitoring Systems
TZ Coastal Monitoring
Thanks to the technical collaboration and expertise shared by Furuno and TIMEZERO, this solution offers superior maritime surveillance for oil rigs, sea farms, ports, waterside facilities, and protected areas.
The first true turnkey solution for maritime surveillance
TZ Coastal Monitoring is a coastal surveillance system that integrates Furuno radars with TIMEZERO software and technologies. The TZ Coastal Monitoring Software provides numerous features in a single, user-friendly interface, offering data such as radar, target tracking, tide and weather forecasts, along with dual satellite and video monitoring views. Its adaptability allows it to be installed in various configurations to meet different surveillance requirements, ranging from monitoring small and medium harbors to extensive surveillance aimed at securing large areas and busy ports.
TZ Coastal Monitoring Key Benefits
Easy to Use
Quick to implement
Low maintenance cost
Cost-effective
Proven reliability
Experienced partners
Customizable
Frédéric Algalarrondo
Sales & Marketing Director at MaxSea
"TZ Coastal Monitoring is the first true turnkey solution for Maritime Surveillance. It offers a comprehensive set of tools for real-time monitoring, data analysis, and decision-making to ensure the safety and security of coastal areas. Our solution's flexibility and scalability make it the ideal choice for both small ports and large coastal regions, adapting seamlessly to each user's specific needs."


-
Waterside facilities
This solution effectively safeguards coastal facilities and critical zones, preventing terrorism, theft, ensuring traffic control, and worker safety.
-
Marine protected areas
National parks and other conservation areas frequently require an effective monitoring and surveillance system, which is precisely what TZ Coastal Monitoring provides.
-
Ports & Harbors
TZ Coastal Monitoring allows ports to monitor traffic safely, preventing ship collisions and ensuring secure berthing along with efficient transport of passengers and goods.
-
Fish Farms
This solution ensures employee safety on fish farms, prevents robberies, and monitors unknown vessels threatening equipment, especially during nighttime operations.
-
Oil & Gas Platforms
A comprehensive solution protecting the rig from uncontrolled vessels, piracy, terrorism, and severe weather, minimizing safety risks and maintenance costs.
TZ Coastal Monitoring Features
Radars Integration

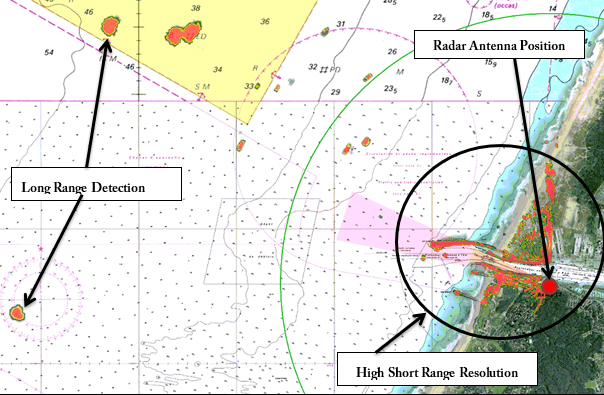

TZ Coastal Monitoring is designed to provide an exceptional level of integration with many of the newest Furuno Radars. The DRS range includes a highly effective and patented DUAL RANGE feature. This sophisticated feature allows the radar to simultaneously scan and display two separate real-time ranges with each antenna rotation. Consequently, it maintains excellent short-range resolution and long-range detection using a single radar antenna.

Camera Integration
TZ Coastal Monitoring's Camera Integration is natively compatible with certain FLIR cameras and works with the Pelco-D standard protocol, allowing control of almost any camera type. The system automatically detects the camera and its features.
Alarms Management
TZ Coastal Monitoring provides advanced and highly customizable alarm management. Authorized users can swiftly establish new alarms and rules through the alarm options menu.
Record/Replay
Record/Replay is an optional module that enables the recording of data from various sensors linked to TZ Coastal Monitoring. Users can design personalized WorkSpaces with timelines, set up Radar, Camera, and integrated displays, and replay all data using the timeline feature.
Weather Forecasts
TZ Coastal Monitoring offers free and unlimited access to global weather forecasts. You can download reliable forecasts for up to 16 days at no cost directly from the software or receive them via email. Additionally, TZ Coastal Monitoring can connect to a Real Time Weather Station for more services.
VHF Communications
TZ Coastal Monitoring can connect with up to four VHF radios, enabling the simultaneous monitoring of four channels.
AIS / ARPA Targets
TZ Coastal Monitoring offers advanced AIS management, enabling vessel classification by color and type, either automatically or manually. Using proprietary ARPA algorithms, it processes radar data for superior detection, allowing customizable monitoring areas for precise vessel tracking.
Remote Access
The TZ Coastal Monitoring Remote product enables the integration of data (Radar, AIS, and ARPA targets) from several stations equipped with either TZ Coastal Monitoring One Radar or Two Radars. This allows the operator at the Supervision Center (where TZ Coastal Monitoring Remote is set up) to monitor and manage all activities.

Radar echoes displayed on the map

Real time video camera monitoring integrated into the satellite view

Chart displaying AIS information

Weather forecast screen with animations

Dual screen (video camera and satellite view)

Dual screen ( map chart and radar)
TZ COASTAL MONITORING: THE CUTTING EDGE MARITIME SURVEILLANCE SOLUTION YOU CAN AFFORD!


-
Oil and Gas Rigs
-
Oil and Gas Rigs
-
Fish Farms
-
Ports and Harbors
-
Ports and Harbors
-
Marine Protected Areas
-
Marine Protected Areas
-
Waterside Facilities
.jpg)
Coastal Monitoring Systems
Surveillance Radar System
Furuno's Surveillance Radar System detects and tracks various activities to enhance security through real-time monitoring, supporting maritime navigation, port surveillance and other operations with precision and reliability.

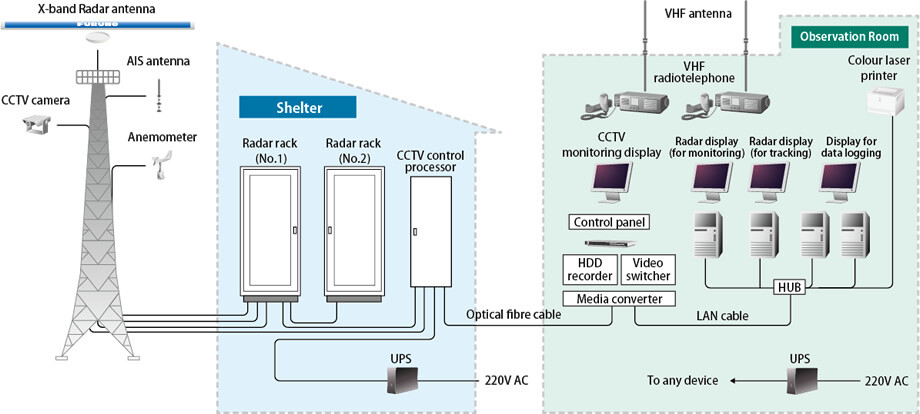

Large-scale surveillance Radar system
A comprehensive radar system designed for extensive area oversight, ideal for applications like maritime traffic management, monitoring hazardous zones, patrolling unidentified vessels, and port surveillance.

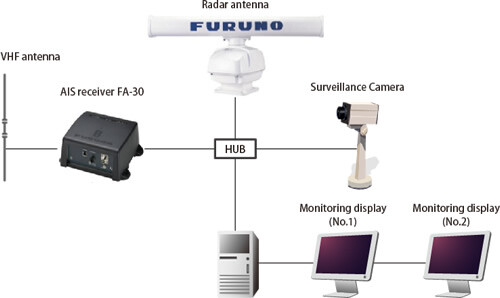

Moderate-scale Surveillance Radar System
Ideal for overseeing activities within confined areas such as narrow straits or small port regions, the system excels in monitoring poachers, fish farms, and fishing grounds managed by Fishery Cooperative Associations.
It is also effective for tracking workboats at offshore engineering sites. Furthermore, it is anticipated that the system will be highly beneficial for Local Port Services internationally, making it an excellent choice for smaller organisations where large-scale operational funding is challenging.


Coastal Monitoring Systems
Coastal Radio Station System
Furuno has implemented numerous coastal radio station systems utilizing its accumulated expertise in radio communication techniques. Additionally, Furuno designs safety communication systems for the fishery market, enabling voice and data communications for fishery radio stations. Currently, Furuno aims to develop an advanced system that not only improves safety and security but also optimizes business operations by integrating supplementary information such as marketing and weather data.
Large-scale coastal radio station system

Small/moderate-scale coastal radio station system
Remote monitoring of transmitting and receiving stations can be managed from a coastal radio station facility. In addition, distress alerts from non-digital ship stations, such as MOB beacon detectors connected to outdated analogue radio communication equipment, can also be received.

ESSENTIAL DOWNLOADS
Here you can find all relevant information about this topic.
Contact us for all inquiries regarding our Coastal Monitoring Systems.
