REMOTE DISPLAY
Model SFD-1012
Highly Flexible Display!
The SFD-1012 is a 12.1" FLEX function display with touch control for multibeam fish finders, fish finders, or radar.
REF: IMD040220AA
SFD-1012
Multibeam Fish Finder with DFF-3D
DFF-3D/SFD Combo features sea current overlay & virtual net mark: thanks to a virtual fishing net, you will be able to determine the position of the net's mouth about the targeted school of fish and thus increase the efficiency of your catch. In addition, you can overlay sea current information as shown in the picture.
Fish Finder with BBDS1, DFF1, DFF1-UHD, DFF3
Choose your best fish finder among BBDS1, DFF1, DFF1-UHD, and DFF3 depending on your needs.
High resolution fish finders provide better bottom contours & clearer presentation that separates bottom structure from bottom fish.
Radar with DRS4DL+
Connect our Plug-and-Play radar to ensure your safety at sea with the extremely compact Radome 19" DRS4DL+, which features Fast Target Tracking™ and requires only one LAN cable and one Power Supply cable for its installation.
The multi-station feature allows you to connect two SFD displays to one radar. We recommend the vertical orientation when using Off-center. it is perfect for workboats
Flexible orientation for your favorite display mode
Flexible configuration with the Multi-Station
Connect two SFD-1010/1012 display units with two sensors at the same time, or two display units with one sensor through the Hub unit to be able to view your desired modes at the same time with only one setup.
Available configurations:
2 Sensors with 2 displays
1 Sensor with 2 displays
1 Sensor with 1 display
*2 display units max
*1 radar unit max for each configuration
| Name | Reference | Type | Short Description | ||
| SCX-20 |
IMD031520AA |
Connectable Product | FURUNO SATELLITE COMPASS |
| |
| OP03-136 |
00008644300 |
ALARM | EXTERNAL ALARM BUZZER |
| |
| HUB-101 |
00001176200 |
CONNECTOR | HUB101 Hub Ethernet 8 ports 12-24Vcc Navnet (Fonction Power Synchronisation) |
| |
| DFF1-UHD |
IMD03356002 |
Connectable Product | The DFF1-UHD is a black box TruEcho CHIRP™ 1 kW fish finder (50±20 & 200±25 kHz), including a 5 m LAN cable, and transducer in option. |
| |
| SCX-21 |
IMD036670AA |
Connectable Product | FURUNO SATELLITE COMPASS |
| |
| DFF-3D |
IMD03357000 |
Connectable Product | The DFF-3D is a multibeam fish finder for NavNet TZtouch series, and SFD (Flex Function Displays) series, transducer in option. |
| |
| RCU-030 |
00002785700 |
CONTROL UNIT | TRACKBALL CONTROL UNIT |
| |
| IF-NMEA2K2 |
00003767000 |
INTERFACE | NMEA DATA CONVERTER |
| |
| DRS4DL+ |
IMD03660001 |
Connectable Product | The DRS4DL+ is a 4 kW, 36 nm, 19" UHD radome radar sensor, compatible with NavNet TZtouch series, FR-10/12, and SFD-1010/1012., cables in option. |
| |
| BBDS1 |
IMD03217001 |
Connectable Product | The BBDS1 is a black box fish finder with bottom discrimination (BDS), 1 kW power, 50/200 kHz frequency, designed for NavNet systems. |
| |
| CB-05PM+05BF-010 |
00016796811 |
CABLE | CABLE ASSEMBLY |
| |
| CB-05PM+05BF-060 |
00016797011 |
CABLE | CABLE ASSEMBLY |
| |
| FRU-MF000000001 |
00150706000 |
CONNECTOR | TERMINATION RESISTOR(MICRO) |
| |
| FRU-NMEA-PFF-060 |
00150704000 |
CABLE | CABLE ASSEMBLY |
| |
| FRU-NMEA-PMMFF-060 |
00153308000 |
CABLE | CABLE ASSEMBLY |
| |
| FRU-MM1000000001 |
00150707000 |
CONNECTOR | TERMINATION RESISTOR(MICRO) |
| |
| FI-5002 |
00001076500 |
CONNECTOR | The FI-5002 is a NMEA2000 junction box, 12 V, 8 PORTS. |
| |
| CB-05BFFM-010 |
00016797111 |
CABLE | CABLE ASSEMBLY |
| |
| TL-CAT-012 |
00016714010 |
CONNECTOR | JOINT BOX |
| |
| FRU-NMEA-PFF-020 |
00150703000 |
CABLE | CABLE ASSEMBLY |
| |
| FRU-0505-FF-IS |
00107783010 |
CONNECTOR | IN-LINE TERMINATOR |
| |
| MOD-Z072-020+ |
00116788010 |
CABLE | LAN CABLE ASSEMBLY |
| |
| LTWMN-05AFFT-SL8001 |
00016050910 |
CONNECTOR | TERMINATION RESISTOR(MINI) |
| |
| FRU-NMEA-PMMFF-020 |
00153307000 |
CABLE | CABLE ASSEMBLY |
| |
| CB-05BFFM-020 |
00016797211 |
CABLE | CABLE ASSEMBLY |
| |
| FRU-MM1MF1MF1001 |
00150705000 |
CONNECTOR | MICRO T-CONNECTOR |
| |
| FRU-NMEA-PFF-010 |
00150701000 |
CABLE | CABLE ASSEMBLY |
| |
| CB-05BFFM-060 |
00016797311 |
CABLE | CABLE ASSEMBLY |
| |
| MOD-Z072-050+ |
00116789010 |
CABLE | LAN CABLE ASSEMBLY |
| |
| MOD-Z072-100+ |
00116790010 |
CABLE | LAN CABLE ASSEMBLY |
| |
| CB-05PM+05BF-020 |
00016796911 |
CABLE | CABLE ASSEMBLY |
| |
| FRU-NMEA-PMMFF-010 |
00153306000 |
CABLE | CABLE ASSEMBLY |
| |
Name
Reference
Type
Short Description
IMD031520AA
00008644300
00001176200
IMD03356002
IMD036670AA
IMD03357000
00002785700
00003767000
IMD03660001
IMD03217001
00016796811
00016797011
00150706000
00150704000
00153308000
00150707000
00016797111
00016714010
00150703000
00107783010
00116788010
00016050910
00153307000
00016797211
00150705000
00150701000
00016797311
00116789010
00116790010
00016796911
00153306000
| Name | Reference | Type | Short Description | ||
| LTWMN-05AMMT-SL8001 |
00016050810 |
Spares | TERMINATION RESISTOR(MINI) |
| |
| NC-050505-FMF-TS001 |
00016050710 |
Spares | MINI/MICRO T-CONNECTOR |
| |
Name
Reference
Type
Short Description
00016050810
00016050710
Download all the necessary documents
High-fidelity wireframes are often used for documenting because they incorporate.
Product Advantages
Designed to work with our most popular sensors: multibeam fish finder, fish finder, radar
Flexible orientation for your favorite display mode
Flexible configuration with the multi-station
In the box
1 x display unit SFD-1012-E
1 x installation materials and spare parts

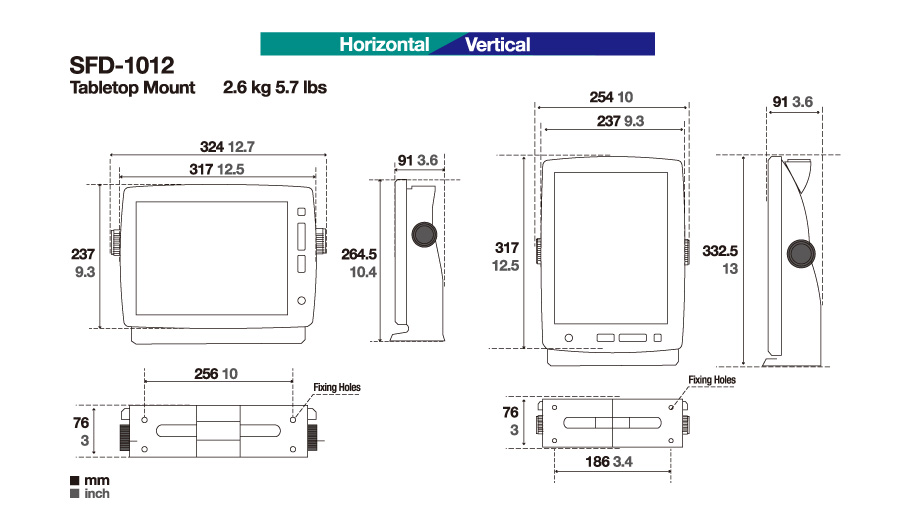

Dimension diagrams
