RADIOTELEPHONE
FS-2575
Reliable MF/HF radiotelephone for general and distress communications with integrated DSC/DSC Watch Receiver
The FS-2575 is a 250 W MF/HF radiotelephone with DSC, fully IMO-compliant.
REF: IMD03270005
More options:
FS-2575
MERCHANT MARINE
YACHTING
BOATING / SPORTFISHING
WORKBOAT
COMMERCIAL FISHING
- FEATURES
- ACCESSORIES AND SPARE PARTS
- VIDEOS
- RESOURCES
- SPECIFICATIONS
Reliable MF/HF Radiotelephone for general and distress communications with integrated DSC/DSC Watch Receiver
The 250 W FS-2575 is a reliable MF/HF radiotelephone for general and distress communications with integrated DSC/DSC watch receiver. It facilitates both general and GMDSS communication, operating as a DSC transceiver and as a DSC watch receiver on all distress and safety frequencies in MF and HF bands. An optional IB585 NBDP terminal can be connected to the transceiver unit for maritime telex operation and distress message/maritime safety information handling. It features a bright, high-contrast 4.3" color LCD (480x272 pixels). Multiple display configurations are available, as well as a night mode (white text on black background display) for wheelhouse operation. Instant selection of 256 user-specifed channels is provided with a rotary knob or direct keypad input. Quick access to DSC message composition is available by dedicated keys on the control unit. The FS-2575 fully meets GMDSS carriage requirements for SOLAS ships operating in A3 and A4 sea areas, as well as ITU recommendation on digital selective calling system for use in the Maritime Mobile Service, ITU-R M.493-13.
Capable of distress, safety and routine communications
Three quick-access functions may be assigned which become instantly accessible via keys 1, 4, and 7 on the numeric keypad. Functions available for quick access include: TX frequency setting, RX frequency setting, class of emission setting, AGC setting, output power setting, TX frequency monitoring, display of a list of test messages, display of a list of message files, execution of daily test, listing of log files, and intercom functions. Numbers are assigned for each of the menu items, and the operator can access each of the menu items either by turning and pressing the PUSH TO ENTER knob to select menu items or simply pressing a number on the numeric keypad.
- Standard Supply
- Option
- Mandatory
- Spares
| Name | Reference | Type | Short Description | ||
| FS-2575T-E | 00001922200 | Standard Supply | TRANSCEIVER UNIT | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| AT-5075 | 00001923200 | Standard Supply | ANTENNA COUPLER | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| FS-2575C-E-A | 00002724000 | Standard Supply | CONTROL UNIT | ||
|
Stock available the
Please contact nearest dealer
|
|||||
Name
Reference
Type
Short Description
| Name | Reference | Type | Short Description | ||
| PP-510 | 00001927200 | PRINTER | PRINTER UNIT | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| IB-585-A | 00002089400 | TERMINAL UNIT | TERMINAL UNIT | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| OP05-98 | 00595183000 | FIXING DEVICE | FLUSH MOUNT KIT | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 04S4168 *20M* | 00109337010 | CABLE | CABLE ASSEMBLY | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 57FE-17JE-BC10PL3000 | 00017447310 | CABLE | CABLE ASSEMBLY | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| DSUB15-5P-L10M | 00114686010 | CABLE | CABLE ASSEMBLY | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| SEM-21Q | 00116597010 | LOUDSPEAKER | EXTERNAL LOUDSPEAKER | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 05S0793-2 *10M* | 00157387000 | CABLE | 5P TWISTED PAIR CABLE | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| FAX-5 *15M* | 00001170200 | MISCELLANEOUS | PRE-AMP UNIT 1SET | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| FP05-05510 | 00595179000 | FIXING DEVICE | BRACKET FOR HANDSET | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| DSUB15-5P-L5M | 00114685010 | CABLE | CABLE ASSEMBLY | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 05S0793-0 *20M* | 00012598610 | CABLE | 5P TWISTED PAIR CABLE | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 04S4176 R4 54 597 | 00130873000 | ANTENNA | WHIP ANTENNA | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 05S0952-0 *30M* | 00075882310 | CABLE | CABLE(7C) | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| PR-850A | 00002515900 | POWER SUPPLY | RECTIFIER(AC-DC PWR SUPPLY) | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| DSUB15-5P-L20M | 00114687010 | CABLE | CABLE ASSEMBLY | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| PP-520 | 00002269400 | PRINTER | PRINTER | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| WH-027-10M | 00113940010 | ANTENNA | VERTICAL ANTENNA (10 METER) | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 05S0952-0 *10M* | 00075882110 | CABLE | CABLE(7C) | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| DSUB15-5P-L30M | 00114688010 | CABLE | CABLE ASSEMBLY | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 04S4168 *30M* | 00109338010 | CABLE | CABLE ASSEMBLY | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| IF-8500 | 00005389500 | INTERFACE | PRINTER INTERFACE | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 05S0793-0 *40M* | 00012598810 | CABLE | 5P TWISTED PAIR CABLE | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| OP05-122 | 00113560000 | FIXING DEVICE | FLUSH MOUNT KIT | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| HS-2003-15 | 00005422300 | HANDSET | HANDSET | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 05S0793-0 *10M* | 00012598410 | CABLE | 5P TWISTED PAIR CABLE | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| RG-10/U-Y *30M* | 00123488000 | CABLE | ARMOURED COAXIAL CABLE | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| RG-10/U-Y *10M* | 00123486000 | CABLE | ARMOURED COAXIAL CABLE | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| RG-10/U-Y *20M* | 00123487000 | CABLE | ARMOURED COAXIAL CABLE | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| RG-10/U-Y *40M* | 00123489000 | CABLE | ARMOURED COAXIAL CABLE | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| RG-10/U-Y *50M* | 00123490000 | CABLE | ARMOURED COAXIAL CABLE | ||
|
Stock available the
Please contact nearest dealer
|
|||||
Name
Reference
Type
Short Description
| Name | Reference | Type | Short Description | ||
| FD-05HG-8861 W/CASE | 00107754000 | Spares | FLOPPY DISK DRIVE W/CASE | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 05P0871(LF) P-SW | 00114603000 | Spares | PRINTED CIRCUIT BOARD | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| G84-4100PPAUS | 00017201810 | Spares | KEYBOARD | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 05S9509-L500 | 00016895510 | Spares | CABLE ASSEMBLY | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 05P0861(LF) T-IF | 00114592000 | Spares | PRINTED CIRCUIT BOARD | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 05P0860(LF) MOT | 00114591000 | Spares | PRINTED CIRCUIT BOARD | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 05P0862B(LF) RX-FIL | 00114594000 | Spares | PRINTED CIRCUIT BOARD | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| OP04-3 | 00428930000 | Spares | CONNECTOR ASSEMBLY | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| KNOB(N2.5) | 00102645000 | Spares | KNOB | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 05P0847A(LF) WR1 | 00114588000 | Spares | PRINTED CIRCUIT BOARD | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 05P0859(LF) T-CPU | 00114590000 | Spares | PRINTED CIRCUIT BOARD | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 05P0864(LF) PA-IF | 00114595000 | Spares | PRINTED CIRCUIT BOARD | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 05P0842(LF) RX | 00114587000 | Spares | PRINTED CIRCUIT BOARD | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| MRF-448 | 00536962000 | Spares | TRANSISTOR SET | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| FP03-09204 KNOB | 00852365000 | Spares | KNOB | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| SD1407 X 2 PCS. | 00595237000 | Spares | PA TRANSISTOR SET | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| SEM-21Q | 00120854000 | Spares | EXTERNAL LOUDSPEAKER | ||
|
Stock available the
Please contact nearest dealer
|
|||||
Name
Reference
Type
Short Description
Download all the necessary documents
High-fidelity wireframes are often used for documenting because they incorporate.
Product Advantages
MF/HF radiotelephone with DSC facility
Fully meets GMDSS carriage requirements for SOLAS ships.
Meets the new ITU recommendation on digital selective calling system for use in the Maritime Mobile Service, ITU-R M.493-14
High-contrast 4.3" bright color LCD (480x272 pixels)
Capable of distress, safety and routine communication
Instant selection of 256 user-specifed channels with a rotary knob or direct keypad input
Quick access to DSC message composition by dedicated keys on the control unit
Quick access to dedicated functions in the menu operation using numeric keypad
Features
| Feature | Description | Units | |||
| ENVIRONMENT Waterproofing | 56 (ATU) | IP | |||
|
Stock available the
Please contact nearest dealer
|
|||||
| INTERFACE Serial input | INPUT GPS signal | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| POWER Consumption | 40 | A | |||
|
Stock available the
Please contact nearest dealer
|
|||||
| POWER Input | 24 | V | |||
|
Stock available the
Please contact nearest dealer
|
|||||
| PRODUCT Function | ASN / GMDSS | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| PRODUCT Standard | ITU-R M.1082-1, ITU-R M.1173-1, ITU-R M.476-5, ITU-R M.490, ITU-R M.491-1, ITU-R M.492-6, ITU-R M.493-15, ITU-R M.541-10, ITU-R M.625-4, ITU-R M.821-1, IMO Res. A.694(17), IMO Res. A.806(19), IMO Res. MSC36 (63), IMO Res. MSC 68 (68), MSC/Circ. 862, IEC 61162-1 Ed. 5, IEC60945 Ed. 4, ETS 300 067 ed. 1, EN 300 338-1 V1.6.1, EN 300 338-2 V1.5.1, EN 301 033 V1.4.1, EN 300 373-1 V1.4.1 | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| PRODUCT Type | SSB RADIOTELEPHONE | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| RADIOTELEPHONE frequency | 1,6 - 27,5 | MHz | |||
|
Stock available the
Please contact nearest dealer
|
|||||
| RADIOTELEPHONE Channels | 256 user-specified channels plus ITU, SSB/TELEX channels | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| RADIOTELEPHONE Class of emission | J3E, H3E, A1A, J2B | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| RADIOTELEPHONE Communication System | Simplex / semi-duplex | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| RADIOTELEPHONE DSC protocol | All DSC frequencies in MF/HF / DSC distress/safety frequencies: 2187.5 kHz, 4207.5 kHz, 6312.0 kHz, 8414.5 kHz, 12577.0 kHz, 16804.5 kHz | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| RADIOTELEPHONE Output power | 250 | W | |||
|
Stock available the
Please contact nearest dealer
|
|||||
| WHEELMARKED / IMO Compliant | Yes | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
Feature
Description
Units
In the box
FS-2575 24VDC (250W version)
Comprising:
1 x FS-2575C-E-A, control unit with w/handset HS-2003 (1.5m curled cable) with bracket, and 5m cable DUB15-5P-L between FS-2575C-E-A, and FS-2575T-E
1 x AT-5075, antenna coupler 1 unit
1 x 05S0793-0, 5P twisted pair cable 10 m, between FS-1575T-E, and AT-1575-AES
1 x FS-2575T-E, transceiver unit
1 x standard installation materials, and spare parts
Notes:
DSP board for NBDP is incorporated in standard set.
Only 1 pc cable (10 m armored cable 05S0793-0) between FS-2575T-E and AT-5075 is included.

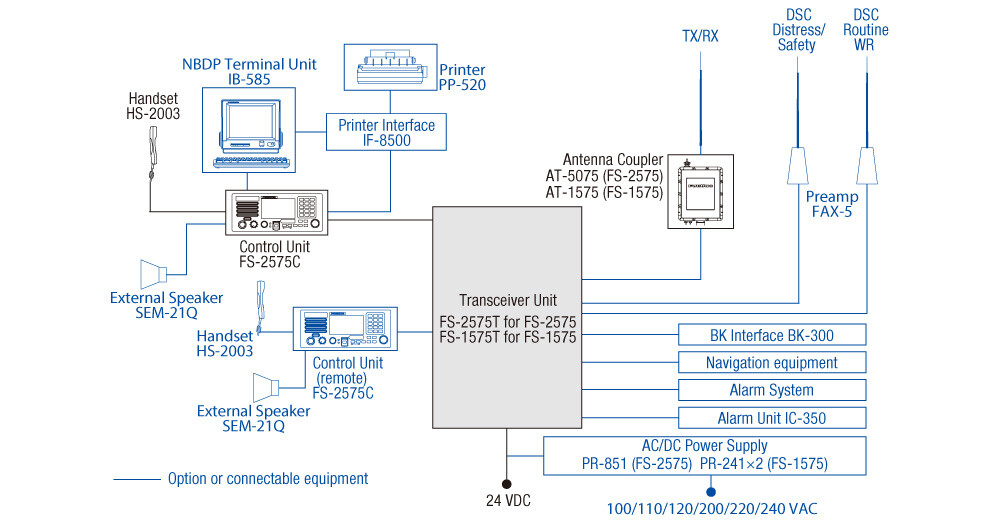

Interconnection diagrams
