EMRI Joystick/DP System | Dynamic Positioning Control Systems



AUTOMATIC POSITION KEEPING FOR SAFE AND EFFICIENT MANEUVERING

EMRI JS/DP System provides excellent manoeuvring capabilities with user friendly modes of operation



The Joystick/Dynamic Positioning system builds on many years of experience in designing intuitive and safe navigation equipment together with an extensive database of ship models. Each system is thoroughly factory-tested to ensure high performance and reduce sea-trial time, which can often be completed and approved within a one- to two-day onboard visit. The operator panel features a programmable, high-brightness display with day and night modes, providing clear, relevant information at all times during manoeuvring in both automatic and manual control modes.

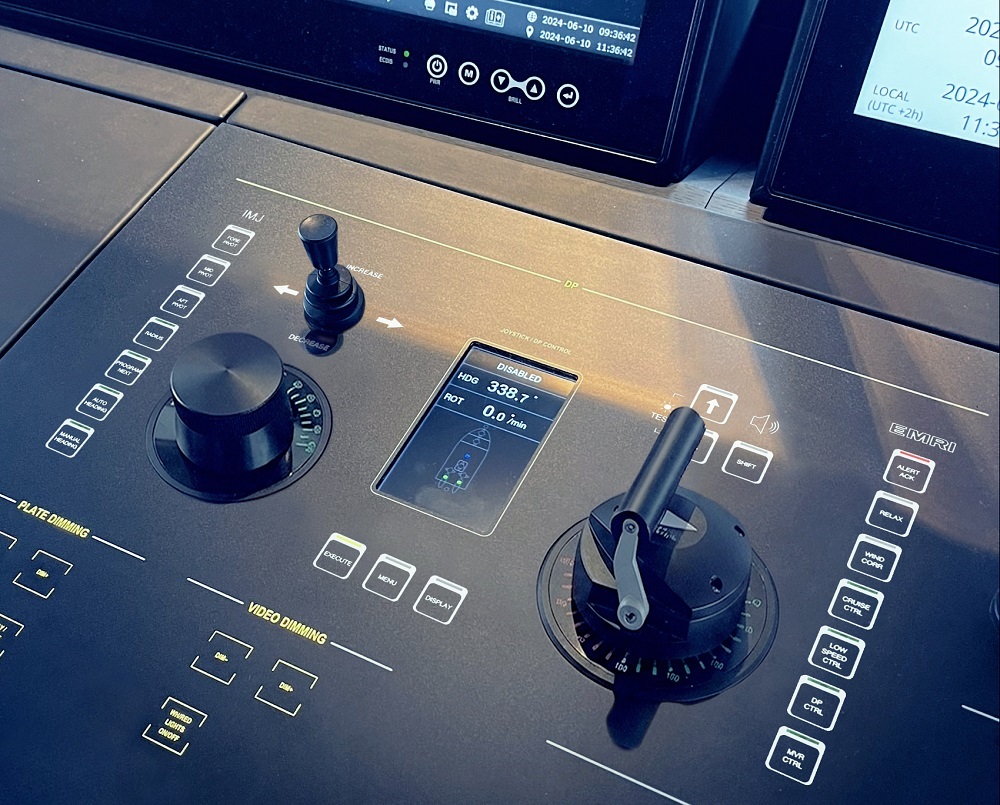

FLEXIBLE CONSOLE DESIGN



On Cruise Liners and Giga Yachts with plenty of console space, the EMRI JS/DP-panels can be directly dropped down in the cut-outs on the consoles for easy “plug’n’play”. On Mega Yachts with tighter console design the JS/DP panels can be integrated into the overall foil-design, utilizing a common layout of buttons, texts and lamps. The system thereby appears to be a nicely integrated shipyard design.

JSDP_flexible console design 1000 px

a14eb22c-0c0c-f111-8407-000d3ab53953-fcdm_valueimage_url-full

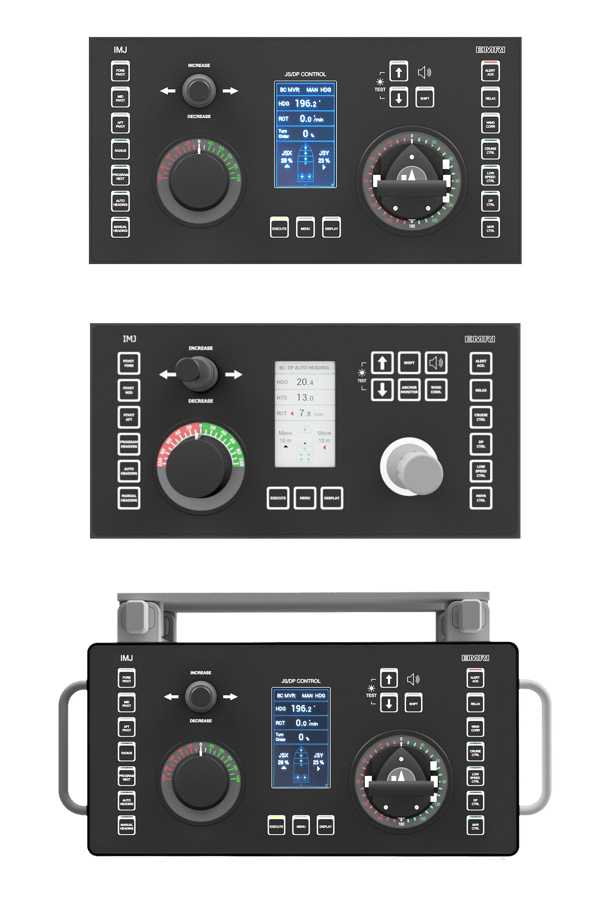

PANEL OPTIONS



EMRI´s series of IMJ operator panels are designed to be customizable with different layouts for individual users:

Shape

Simple panels: joystick + tiller

Shape
More complex panels: mini wheel (turning power / steering control) or azimuth lever
Shape

Can easily replace old systems to improve human machine interface with minimal change to operating style


Large panel integration

Levers, display, and pushbuttons can be delivered as individual modules for yard-/owner-specific console layouts, mountable from the bottom up for a streamlined console look.



Lever options

Levers from various makers can be used if the electrical interface is approved. Panels can also be designed with el-shaft controlled levers.



Push button options

Special push button designs can be developed to match a uniform bridge design.



Portable option

A watertight portable panel can be hooked onto bulkhead/railing-mounted hooks and used across multiple workstations to reduce panel count, cost, and console space. Delivered with a rugged cable and rugged connectors to improve durability and can be stowed when not in use.

CONTROL MODES



The Joystick/Dynamic Positioning System offers simple and safe control features, designed for low-speed maneuvering and position keeping.

ShapeMANEUVER CONTROL

Manual steering with joystick for low-speed maneuvering:

  • Auto Heading: maintains a set heading automatically

  • Wind Correct: compensates for wind impacts while maintaining heading



ShapeDP CONTROL

Dynamic positioning using thrusters and rudders to maintain a specified position:

  • Auto Heading: holds a specified heading during DP

  • Wind Heading: aligns vessel against wind to optimize fuel consumption during position keeping

  • Shadow vessel visualization: the operator can preview the planned movement before execution using a “shadow vessel” shown on the DP display, referenced to the actual vessel position



JSDP_DP control



ShapeRELAXED MODE

For improved fuel efficiency, Relaxed Mode can be enabled in Maneuver Control or DP Control:

  • In Maneuver Control: minimizes rudder movement for relaxed, fuel-saving heading keeping

  • In DP Control: allows drift within a larger specified radius to reduce power use while holding position

  • Precise vs. Relaxed settings are individually configured for each vessel according to specifications

JSDP_relaxed mode

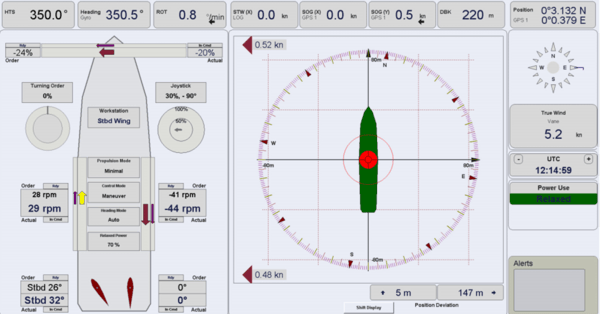

DP DISPLAY



The Dynamic Positioning display application can be shown on the navigation system supplier’s computer, or a computer delivered by EMRI. VDU pictures are designed to each vessel’s maneuver-devices.

JSDP_DP display



JSDP_capability plots

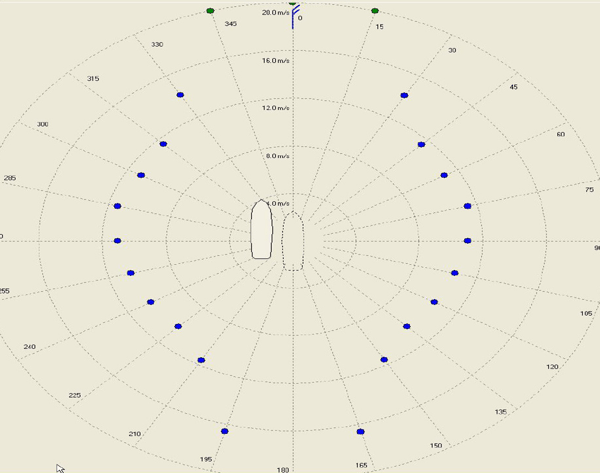

CAPABILITY PLOTS



All EMRI’s DP-systems are preceded by a series of Capability Plots. This is a polar diagram of the ship & DP-system’s ability to resist wind and current. EMRI’s capability plots are computer simulations, examining the delivered control system’s performance against theoretical vessel specifications.

Contact us for all inquiries regarding our Joystick/Dynamic Positioning System.
