FISH FINDER
525T-PWD

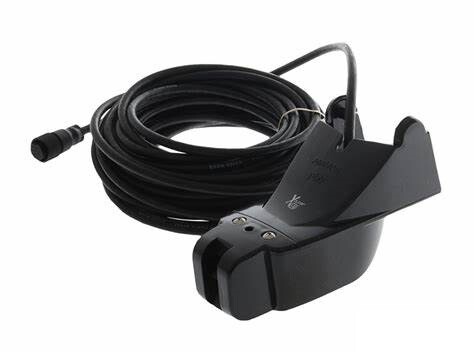

The 525T-PWD is a 600 W plastic transom mount transducer with 50/200 kHz dual-frequency operation, 45°/12° beam angles, integrated temperature sensor, and a 10-pin connector.
REF: 00002301900
525T-PWD reliable dual-frequency performance with 600 W of power at 50/200 kHz
The 525T-PWD features Airmar's P66 housing style and delivers reliable dual-frequency performance with 600 W of power at 50/200 kHz. It offers wide and narrow beam angles of 45° and 12° respectively, and includes a built-in temperature sensor for enhanced functionality. Designed as a plastic transom mount transducer, it comes with a 10 m cable and 10-pin connector, and is available in two distinct mounting hardware styles to suit different installation needs.
| Name | Reference | Type | Short Description | ||
| TZT10X | IMD041090AA | Connectable Product | The TZT10X is a NavNet TZtouchXL multifunction display featuring a 10" hybrid control IPS display with Full HD (1920x1200) resolution. | ||
| FCV-600 | IMD040670AA | Connectable Product | The FCV-600 is a 5.7” fish finder with TruEcho CHIRP™ or CW technology, delivering clear target separation. |
| |
| GP-1971F | IMD034890AB | Connectable Product | The GP-1971F is a 9" multi-touch GPS/WAAS chartplotter with TruEcho CHIRP™ and CW technology, offering advanced navigation and fish detection. | ||
| BBDS1 | IMD03217001 | Connectable Product | The BBDS1 is a black box fish finder with bottom discrimination (BDS), 1 kW power, 50/200 kHz frequency, designed for TimeZero™ software and NavNet systems. | ||
| FCV-800 | IMD040680AA | Connectable Product | The FCV-800 is an 8.4” fish finder with TruEcho CHIRP™ and CW technology, offering superior target separation. |
| |
| TZT13X | IMD041100AA | Connectable Product | The TZT13X is a NavNet TZtouchXL multifunction display featuring a 13" hybrid control IPS display with Full HD (1920x1080) resolution. | ||
| TZT16X | IMD041110AA | Connectable Product | The TZT16X is a NavNet TZtouchXL multifunction display featuring a 16" all-glass IPS display with Full HD (1920x1080) resolution. | ||
Name
Reference
Type
Short Description
Download all the necessary documents
High-fidelity wireframes are often used for documenting because they incorporate.
Features
In the box
1 x transducer 525T-PWD
1 x 10 m cable
