FISH FINDER
526TID-HDD
The 526TID-HDD is a 1 kW bronze thru-hull transducer with a built-in diplexer, hi-speed fairing block, dual-frequency 50/200 kHz, 20°/6° beam angles, and a 10-pin connector.
REF: 00002302100

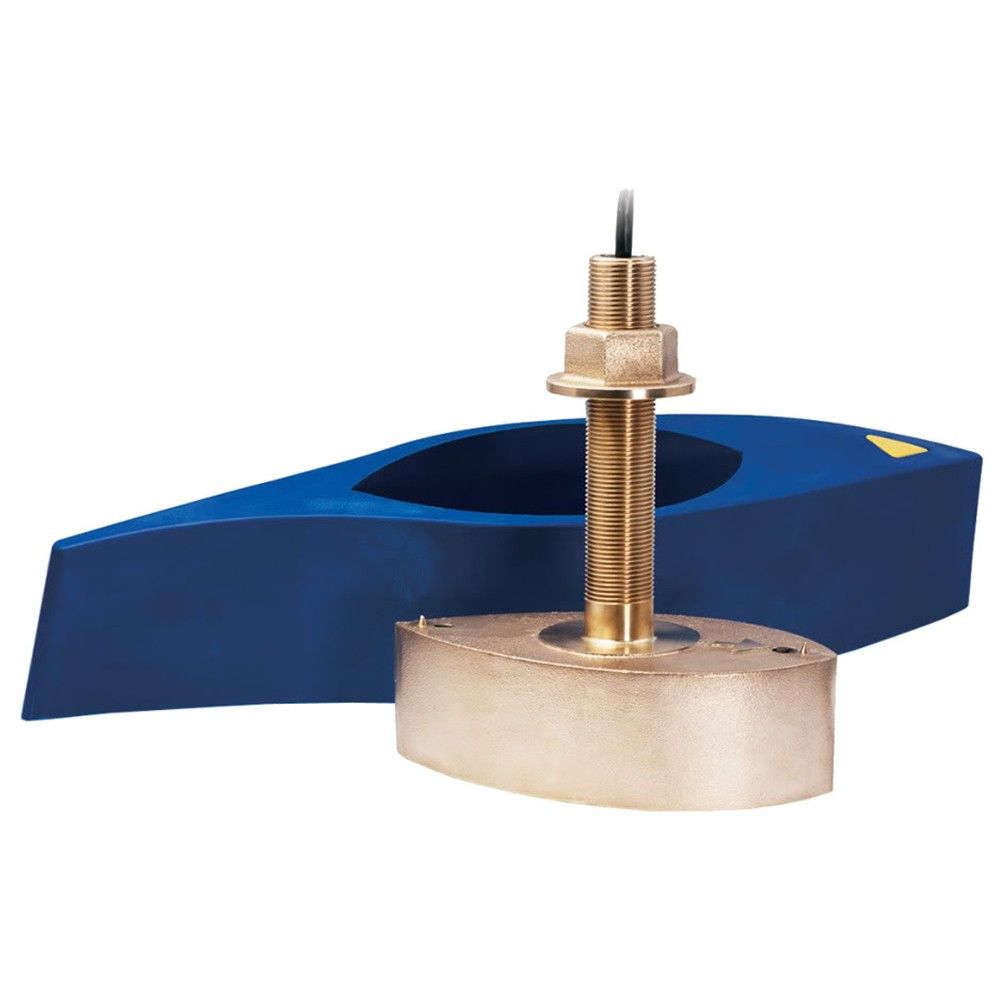

526TID-HDD a high-performance 1 kW bronze thru-hull transducer
The 526TID-HDD is a high-performance 1 kW bronze thru-hull transducer featuring Airmar's B260 housing style, designed for optimal sonar performance. It operates at 50/200 kHz with a diplexer and offers 20° and 6° beam angles for a wide range of applications. This transducer includes an integrated temperature sensor and a 10 m cable with a 10-pin connector, ensuring reliable connectivity. Additionally, it comes with a high-speed fairing block to enhance speed and accuracy in various marine conditions.
| Name | Reference | Type | Short Description | ||
| FCV-800 | IMD040680AA | Connectable Product | The FCV-800 is an 8.4” fish finder with TruEcho CHIRP™ and CW technology, offering superior target separation. |
| |
| TZT13X | IMD041100AA | Connectable Product | The TZT13X is a NavNet TZtouchXL multifunction display featuring a 13" hybrid control IPS display with Full HD (1920x1080) resolution. | ||
| TZT16X | IMD041110AA | Connectable Product | The TZT16X is a NavNet TZtouchXL multifunction display featuring a 16" all-glass IPS display with Full HD (1920x1080) resolution. | ||
| BBDS1 | IMD03217001 | Connectable Product | The BBDS1 is a black box fish finder with bottom discrimination (BDS), 1 kW power, 50/200 kHz frequency, designed for TimeZero™ software and NavNet systems. | ||
| TZT10X | IMD041090AA | Connectable Product | The TZT10X is a NavNet TZtouchXL multifunction display featuring a 10" hybrid control IPS display with Full HD (1920x1200) resolution. | ||
| GP-1971F | IMD034890AB | Connectable Product | The GP-1971F is a 9" multi-touch GPS/WAAS chartplotter with TruEcho CHIRP™ and CW technology, offering advanced navigation and fish detection. | ||
Name
Reference
Type
Short Description
Download all the necessary documents
High-fidelity wireframes are often used for documenting because they incorporate.
Features
In the box
1 x transducer 526TID-HDD
1 x 10 m cable
