FISH FINDER
SS60-SLTD/20
The SS60-SLTD/20 is a 600 W stainless steel thru-hull transducer with a 20° tilted element, dual-frequency 50/200 kHz, 45°/12° beam angles, integrated temperature sensor, and a 10-pin connector."
REF: 00002367700

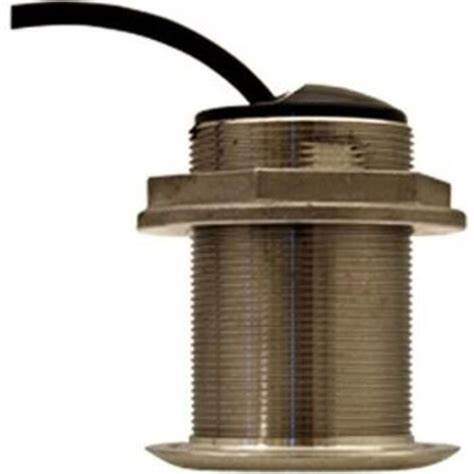

SS60-SLTD/20 a 600 W stainless steel thru-hull transducer
The SS60-SLTD/20 is a 600 W stainless steel thru-hull transducer designed for hulls with a deadrise angle between 16° and 24°. Its 20° tilted element compensates for the hull’s slope, ensuring optimal sonar performance without requiring a fairing block. Operating at 50/200 kHz with 45° and 12° beam angles, it also features a built-in temperature sensor and a 10 m cable with a 10-pin connector. An alignment arrow on the housing ensures proper installation by pointing towards the keel, whether mounted on the port or starboard side.
| Name | Reference | Type | Short Description | ||
| FCV-800 | IMD040680AA | Connectable Product | The FCV-800 is an 8.4” fish finder with TruEcho CHIRP™ and CW technology, offering superior target separation. |
| |
| TZT10X | IMD041090AA | Connectable Product | The TZT10X is a NavNet TZtouchXL multifunction display featuring a 10" hybrid control IPS display with Full HD (1920x1200) resolution. | ||
| FCV-600 | IMD040670AA | Connectable Product | The FCV-600 is a 5.7” fish finder with TruEcho CHIRP™ or CW technology, delivering clear target separation. |
| |
| TZT16X | IMD041110AA | Connectable Product | The TZT16X is a NavNet TZtouchXL multifunction display featuring a 16" all-glass IPS display with Full HD (1920x1080) resolution. | ||
| TZT13X | IMD041100AA | Connectable Product | The TZT13X is a NavNet TZtouchXL multifunction display featuring a 13" hybrid control IPS display with Full HD (1920x1080) resolution. | ||
| GP-1971F | IMD034890AB | Connectable Product | The GP-1971F is a 9" multi-touch GPS/WAAS chartplotter with TruEcho CHIRP™ and CW technology, offering advanced navigation and fish detection. | ||
Name
Reference
Type
Short Description
Download all the necessary documents
High-fidelity wireframes are often used for documenting because they incorporate.
Features
In the box
1 x transducer SS60-SLTD/20
1 x 10 m cable
