FISH FINDER
BBDS1
BBDS1 revolutionizes finding fish with bottom discrimination fish finding feature!

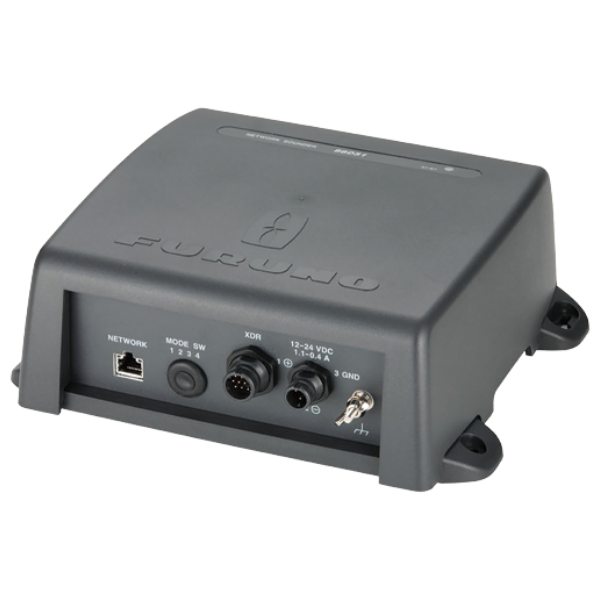

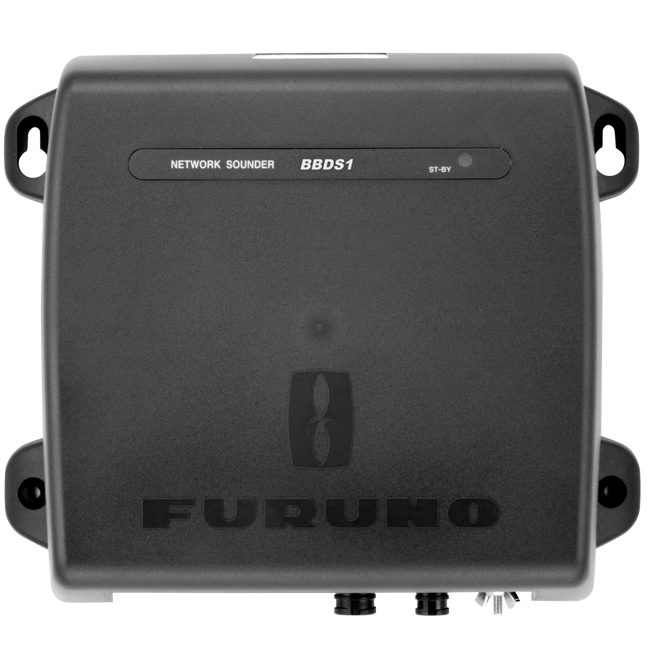

The BBDS1 is a black box fish finder with bottom discrimination (BDS), 1 kW power, 50/200 kHz frequency, designed for TimeZero™ software and NavNet systems.
REF: IMD03217001
Network fish finder with Advanced bottom discrimination
The BBDS1 is an advanced network fish finder designed for TimeZero™ Software, NavNet 3D, NavNet TZtouch, and NavNet TZtouch2, integrating cutting-edge bottom discrimination technology alongside the proven FDF (Furuno Digital Filter) capabilities of the DFF1. This powerful system analyzes echo characteristics, such as particle size and hardness, to accurately classify the seabed into four distinct categories: mud, sand, gravel, and rock.
By seamlessly connecting the BBDS1 to your NavNet network, you gain access to invaluable seabed composition data, helping you pinpoint productive fishing areas and maximize your catch.

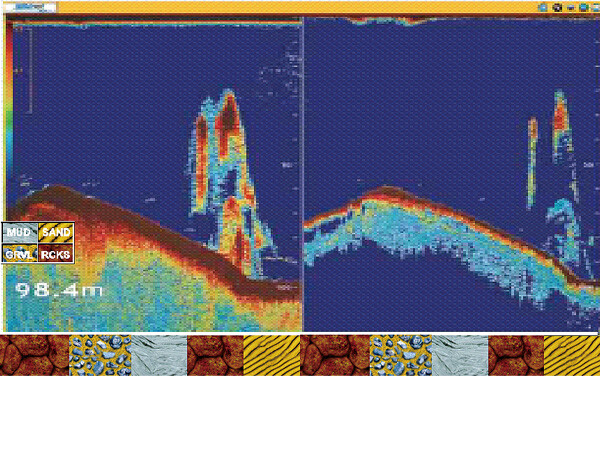

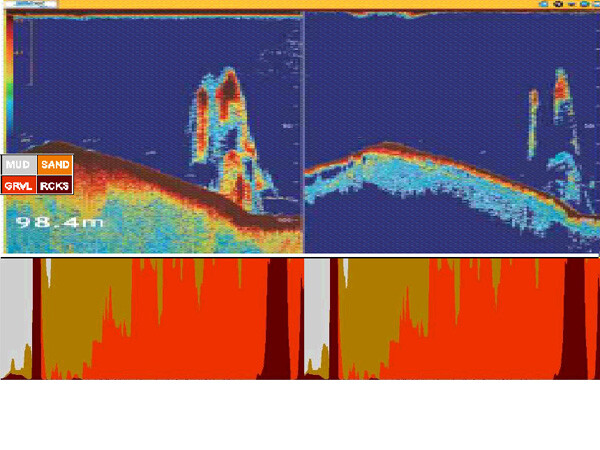

The BBDS1 offers two bottom discrimination display modes: Standard mode and Probability mode. In Standard mode, the most likely bottom composition is displayed in either a graphical representation or a four-color bar at the bottom of the screen, providing clear and intuitive feedback for enhanced fishing success.
Download all the necessary documents
High-fidelity wireframes are often used for documenting because they incorporate.
Product Advantages
With this BBDS1, NavNet 3D/TZtouch/TZtouch2, and TimeZero™ Software can show bottom discrimination information from the depth sounder echogram.
Indicates a major component of the bottom among mud, sand, gravel, and rock.Dual-frequency 50/200 kHz
FDF (Furuno Digital Filter) makes the picture clearer and easier to discriminate between baitfish and larger target species
FDF technology helps adjust gain and output power, as well as suppresses the main bang (echoes just below the transducer)
8/16/64 color echo presentations
8 range scales up to 1200 m
Selectable output power of 600 W or 1 kW
Audio and visual alarms for water depth, fish echoes, and water temperature* *Requires appropriate sensors
Wide variety of transducer options
Selectable automatic cruising or fishing modes to suit your style of boating
Automatic function for detecting fish and bottom in both shallow and deep water
The white line feature helps discriminate fish lying near the bottom
Features
In the box
1 x BBDS1-E, bottom discrimination sounder
1 x power cable MJ-A3SPF0013-035C 3.5m
1 x network cable MOD-Z072-050+ 5m
1 x installation materials and spare parts
