AIS

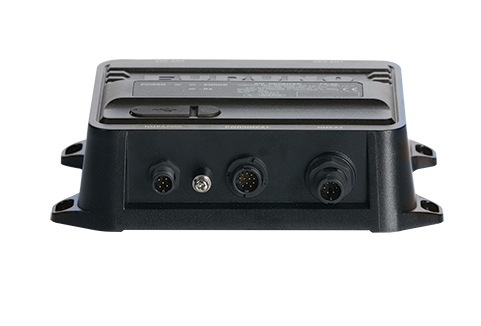

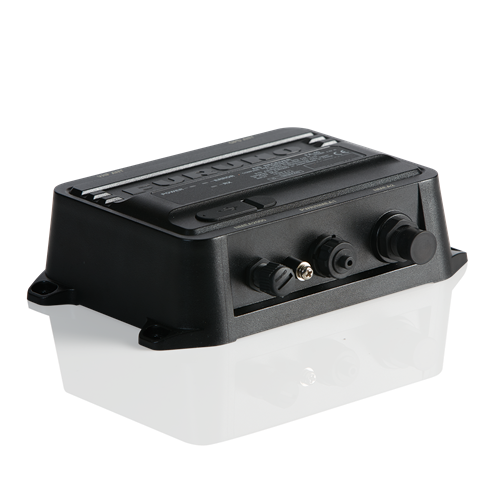

FA-40
The FA-40 delivers "Real-Time" AIS information to navigation systems providing critical collision avoidance information in all weather conditions!
The FA-40, AIS black box receiver, provides navigational data about other AIS-equipped vessels, increasing your situational awareness and allowing you to navigate more safely.
REF: IMD040100AA
More options:
FA-40
Stock available the
Please contact nearest dealer
COMMERCIAL FISHING
BOATING / SPORTFISHING
WORKBOAT
- FEATURES
- ACCESSORIES AND SPARE PARTS
- VIDEOS
- RESOURCES
- SPECIFICATIONS
The FA-40 AIS receiver provides multiple ports for simple connection to your NavNet, AIS-capable radar or chartplotter, or your favorite navigation software. AIS is a critical enhancement in congested waterways, or during periods of limited visibility or heavy seas. Information such as vessel name and call sign, position, course, and speed are graphically presented, allowing you to monitor vessel traffic easily. Because it does not require a line of sight to function, you can see AIS-equipped vessels on your electronics before you can see them on the water.
The FA-40 is an AIS receiver only. It works with nearly any VHF antenna, making installation simple.
- Standard Supply
- Option
- Mandatory
- Spares
| Name | Reference | Type | Short Description | ||
| FA-40 | 00003720000 | Standard Supply | AIS RECEIVER | ||
|
Stock available the
Please contact nearest dealer
|
|||||
Name
Reference
Type
Short Description
FA-40
00003720000
Standard Supply
AIS RECEIVER
Check Availability
Stock available the
| Name | Reference | Type | Short Description | ||
| 8D-FB-CV 50M | 00116319010 | CABLE | ANTENNA CABLE ASSEMBLY | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| MJ-A6SPF0003-050C | 00015405410 | CABLE | Data cable (6PF<->Nu) 5m | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| GPA-017S | 00002931800 | ANTENNA | ANTENNA UNIT | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 8D-FB-CV 30M | 00116317010 | CABLE | ANTENNA CABLE ASSEMBLY | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| MJ-A6SPF0003-150C | 00015964310 | CABLE | SIGNAL CABLE ASSEMBLY | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| NO.13-RC5160 | 00111192010 | FIXING DEVICE | HANDRAIL MOUNTING BASE | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| FRU-NMEA-PMMFF-020 | 00153307000 | CABLE | CABLE ASSEMBLY | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| FRU-MM1MF1MF1001 | 00150705000 | CONNECTOR | MICRO T-CONNECTOR | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| FRU-MF000000001 | 00150706000 | CONNECTOR | TERMINATION RESISTOR(MICRO) | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| PR-240 | 00001363200 | POWER SUPPLY | AC/DC POWER SUPPLY UNIT | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| FRU-0505-FF-IS | 00107783010 | CONNECTOR | IN-LINE TERMINATOR | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| FRU-NMEA-PFF-020 | 00150703000 | CABLE | CABLE ASSEMBLY | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| FRU-NMEA-PMMFF-060 | 00153308000 | CABLE | CABLE ASSEMBLY | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| FRU-NMEA-PMMFF-010 | 00153306000 | CABLE | CABLE ASSEMBLY | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| FRU-NMEA-PFF-010 | 00150701000 | CABLE | CABLE ASSEMBLY | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| CP20-01111 | 00436578000 | FIXING DEVICE | MAST MOUNTING KIT | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| N173F/FEC | 00147435000 | FIXING DEVICE | ANTENNA FIXING BRACKET | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| FRU-NMEA-PFF-060 | 00150704000 | CABLE | CABLE ASSEMBLY | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 8D-FB-CV 40M | 00116322010 | CABLE | ANTENNA CABLE ASSEMBLY | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| FRU-MM1000000001 | 00150707000 | CONNECTOR | TERMINATION RESISTOR(MICRO) | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| NO.13-QA310 | 00111190010 | FIXING DEVICE | L-ANGLE MOUNTING BASE | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| MJ-A6SPF0003-020C | 00015402910 | CABLE | CABLE ASSEMBLY | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| PR-241 | 00003782000 | POWER SUPPLY | AC/DC POWER SUPPLY UNIT | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| MJ-A6SPF0003-100C | 00016892410 | CABLE | SIGNAL CABLE ASSEMBLY | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| TNC-PS/PS-3D-L15M-R | 00117311010 | CABLE | CABLE ASSEMBLY | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| CP20-02701 | 00438119000 | CABLE | ANTENNA CABLE | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| NO.13-QA330 | 00111191010 | FIXING DEVICE | RIGHT ANGLE MOUNTING BASE | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| MJ-A6SPF0003-150C | 00159608000 | CABLE | SIGNAL CABLE ASSEMBLY | ||
|
Stock available the
Please contact nearest dealer
|
|||||
Name
Reference
Type
Short Description
8D-FB-CV 50M
00116319010
CABLE
ANTENNA CABLE ASSEMBLY
Check Availability
Stock available the
MJ-A6SPF0003-050C
00015405410
CABLE
Data cable (6PF<->Nu) 5m
Check Availability
Stock available the
GPA-017S
00002931800
ANTENNA
ANTENNA UNIT
Check Availability
Stock available the
8D-FB-CV 30M
00116317010
CABLE
ANTENNA CABLE ASSEMBLY
Check Availability
Stock available the
MJ-A6SPF0003-150C
00015964310
CABLE
SIGNAL CABLE ASSEMBLY
Check Availability
Stock available the
NO.13-RC5160
00111192010
FIXING DEVICE
HANDRAIL MOUNTING BASE
Check Availability
Stock available the
FRU-NMEA-PMMFF-020
00153307000
CABLE
CABLE ASSEMBLY
Check Availability
Stock available the
FRU-MM1MF1MF1001
00150705000
CONNECTOR
MICRO T-CONNECTOR
Check Availability
Stock available the
FRU-MF000000001
00150706000
CONNECTOR
TERMINATION RESISTOR(MICRO)
Check Availability
Stock available the
PR-240
00001363200
POWER SUPPLY
AC/DC POWER SUPPLY UNIT
Check Availability
Stock available the
FRU-0505-FF-IS
00107783010
CONNECTOR
IN-LINE TERMINATOR
Check Availability
Stock available the
FRU-NMEA-PFF-020
00150703000
CABLE
CABLE ASSEMBLY
Check Availability
Stock available the
FRU-NMEA-PMMFF-060
00153308000
CABLE
CABLE ASSEMBLY
Check Availability
Stock available the
FRU-NMEA-PMMFF-010
00153306000
CABLE
CABLE ASSEMBLY
Check Availability
Stock available the
FRU-NMEA-PFF-010
00150701000
CABLE
CABLE ASSEMBLY
Check Availability
Stock available the
CP20-01111
00436578000
FIXING DEVICE
MAST MOUNTING KIT
Check Availability
Stock available the
N173F/FEC
00147435000
FIXING DEVICE
ANTENNA FIXING BRACKET
Check Availability
Stock available the
FRU-NMEA-PFF-060
00150704000
CABLE
CABLE ASSEMBLY
Check Availability
Stock available the
8D-FB-CV 40M
00116322010
CABLE
ANTENNA CABLE ASSEMBLY
Check Availability
Stock available the
FRU-MM1000000001
00150707000
CONNECTOR
TERMINATION RESISTOR(MICRO)
Check Availability
Stock available the
NO.13-QA310
00111190010
FIXING DEVICE
L-ANGLE MOUNTING BASE
Check Availability
Stock available the
MJ-A6SPF0003-020C
00015402910
CABLE
CABLE ASSEMBLY
Check Availability
Stock available the
PR-241
00003782000
POWER SUPPLY
AC/DC POWER SUPPLY UNIT
Check Availability
Stock available the
MJ-A6SPF0003-100C
00016892410
CABLE
SIGNAL CABLE ASSEMBLY
Check Availability
Stock available the
TNC-PS/PS-3D-L15M-R
00117311010
CABLE
CABLE ASSEMBLY
Check Availability
Stock available the
CP20-02701
00438119000
CABLE
ANTENNA CABLE
Check Availability
Stock available the
NO.13-QA330
00111191010
FIXING DEVICE
RIGHT ANGLE MOUNTING BASE
Check Availability
Stock available the
MJ-A6SPF0003-150C
00159608000
CABLE
SIGNAL CABLE ASSEMBLY
Check Availability
Stock available the
| Name | Reference | Type | Short Description | ||
| GPA-C01 | 00003765400 | Spares | ANTENNA UNIT | ||
|
Stock available the
Please contact nearest dealer
|
|||||
Name
Reference
Type
Short Description
GPA-C01
00003765400
Spares
ANTENNA UNIT
Check Availability
Stock available the
Download all the necessary documents
High-fidelity wireframes are often used for documenting because they incorporate.
Product Advantages
Enhances safe navigation by exchanging critical navigation information from AIS-equipped vessels nearby.
Greatly improves the level of situational awareness even in fog, darkness, or congested waterways.
Flexible integration with various AIS compatible radar and chartplotters.
Optional GPS antenna can be connected to receive GPS information
Initial setup can be done through the NMEA2000 network
Receives both Class A and Class B AIS information
Features
| Feature | Description | Units | |||
| AIS Built-in splitter | - | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| AIS Output power | FA-40 Receive Only | W | |||
|
Stock available the
Please contact nearest dealer
|
|||||
| ENVIRONMENT Temperature (IEC60945) | -15 to +55 | °C | |||
|
Stock available the
Please contact nearest dealer
|
|||||
| ENVIRONMENT Waterproofing | 55 | IP | |||
|
Stock available the
Please contact nearest dealer
|
|||||
| GNSS Position accuracy | 13 ( 2 drms, HDOP <= 4) | m | |||
|
Stock available the
Please contact nearest dealer
|
|||||
| GNSS Receiver type | 12 channels / SBAS 2 channels / 14 satellites tracking | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| GNSS Receiving frequency | 1575.42 | MHz | |||
|
Stock available the
Please contact nearest dealer
|
|||||
| INTERFACE NMEA2000 | 1 | Port | |||
|
Stock available the
Please contact nearest dealer
|
|||||
| INTERFACE NMEA2000 Input | 059392, 059904, 060160, 060416, 060928, 065240, 126208, 127250 | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| INTERFACE NMEA2000 output | 059392, 059904, 060928, 126208, 126464, 126992, 126993, 126996, 126998, 127258, 129025, 129026,129029, 129038, 129039, 129040, 129041, 129540, 129792, 129793, 129794, 1297951, 129796, 129797, 129798, 1298002, 129801, 129802, 129803, 1298041, 129805, 129806, 129807, 129809, 129810, 129811, 1298121, 1298133 1 (FA-40/FA-70: SO-TDMA mode only) 2 (FA-40: SO-TDMA mode only), 3 (FA-70: SO-TMDA mode only) | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| INTERFACE Serial (IEC61162-2) (IEC61162-1) | 2 | Port | |||
|
Stock available the
Please contact nearest dealer
|
|||||
| INTERFACE Serial input | ACA, ACK, AIQ, DTM, GBS, GGA, GLL, GNS, HDT, OSD, RMC, SSD, THS, VBW, VSD, VTG | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| INTERFACE Serial output | ABK, ACA, ACS, ALR, GGA, GLL, RMC, SSD, TXT, VDM, VDO, VER, VSD, VTG | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| POWER Consumption | 0.3-0.2 | A | |||
|
Stock available the
Please contact nearest dealer
|
|||||
| POWER Input | 12/24 | V | |||
|
Stock available the
Please contact nearest dealer
|
|||||
| PRODUCT Size | 177(W) x55(H) x158(D) | mm | |||
|
Stock available the
Please contact nearest dealer
|
|||||
| PRODUCT Standard | EN 303 413 V1.1.1, EN 301 843-1 V2.2.1 / IEC 60945 Ed.4+CORR.1 / IMO MSC.140 (76) / ITU-R M.1371-5 / IEC 62368-1 Ed.3 | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| PRODUCT Type | AIS receiver | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| PRODUCT Weight | 0.45 | Kg | |||
|
Stock available the
Please contact nearest dealer
|
|||||
Feature
Description
Units
AIS Built-in splitter
-
Check Availability
Stock available the
AIS Output power
FA-40 Receive Only
W
Check Availability
Stock available the
ENVIRONMENT Temperature (IEC60945)
-15 to +55
°C
Check Availability
Stock available the
ENVIRONMENT Waterproofing
55
IP
Check Availability
Stock available the
GNSS Position accuracy
13 ( 2 drms, HDOP <= 4)
m
Check Availability
Stock available the
GNSS Receiver type
12 channels / SBAS 2 channels / 14 satellites tracking
Check Availability
Stock available the
GNSS Receiving frequency
1575.42
MHz
Check Availability
Stock available the
INTERFACE NMEA2000
1
Port
Check Availability
Stock available the
INTERFACE NMEA2000 Input
059392, 059904, 060160, 060416, 060928, 065240, 126208, 127250
Check Availability
Stock available the
INTERFACE NMEA2000 output
059392, 059904, 060928, 126208, 126464, 126992, 126993, 126996, 126998, 127258, 129025, 129026,129029, 129038, 129039, 129040, 129041, 129540, 129792, 129793, 129794, 1297951, 129796, 129797, 129798, 1298002, 129801, 129802, 129803, 1298041, 129805, 129806, 129807, 129809, 129810, 129811, 1298121, 1298133 1 (FA-40/FA-70: SO-TDMA mode only) 2 (FA-40: SO-TDMA mode only), 3 (FA-70: SO-TMDA mode only)
Check Availability
Stock available the
INTERFACE Serial (IEC61162-2) (IEC61162-1)
2
Port
Check Availability
Stock available the
INTERFACE Serial input
ACA, ACK, AIQ, DTM, GBS, GGA, GLL, GNS, HDT, OSD, RMC, SSD, THS, VBW, VSD, VTG
Check Availability
Stock available the
INTERFACE Serial output
ABK, ACA, ACS, ALR, GGA, GLL, RMC, SSD, TXT, VDM, VDO, VER, VSD, VTG
Check Availability
Stock available the
POWER Consumption
0.3-0.2
A
Check Availability
Stock available the
POWER Input
12/24
V
Check Availability
Stock available the
PRODUCT Size
177(W) x55(H) x158(D)
mm
Check Availability
Stock available the
PRODUCT Standard
EN 303 413 V1.1.1, EN 301 843-1 V2.2.1 / IEC 60945 Ed.4+CORR.1 / IMO MSC.140 (76) / ITU-R M.1371-5 / IEC 62368-1 Ed.3
Check Availability
Stock available the
PRODUCT Type
AIS receiver
Check Availability
Stock available the
PRODUCT Weight
0.45
Kg
Check Availability
Stock available the
In the box
1 x Main unit FA-40-E
1 x Power/NMEA0183 w/2 m cable
1 x NMEA2000 w/2 m cable
1 x Fuse 5 A
1 x Documents (OM, MDC, CD)
Note:
GPS Antenna GPA-C01 or GPA-017/S as option
Dimension diagrams
Interconnection diagrams
