ECHOSOUNDER
FE-800
Furuno Navigational Echo Sounder FE-800 displays the clearance below the ship in the dual frequency operation!

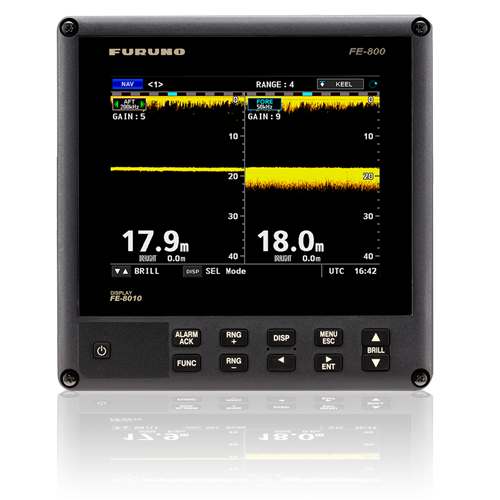

The FE-800 is a color IMO-compliant navigation echosounder with an 8.4" display, 1 kW power, and 50/200 kHz frequency, excluding the matching box and transducer case.
REF: IMD03289001
YACHTING
MERCHANT MARINE
- FEATURES
- ACCESSORIES AND SPARE PARTS
- VIDEOS
- RESOURCES
- SPECIFICATIONS
Display the clearance below the ship
The FE-800 is a result of Furuno's many decades of experience developing echo sounders, sonars, and underwater application equipment and systems. This echo sounder is a breakthrough over the conventional paper sounders; there are no consumable items. The purpose of the echo sounder is to provide safe navigation by detecting the clearance below the ship (particularly in shallow waters) as required on the SOLAS Convention ships by the new IMO standards. The basic system consists of a display unit and distribution box. The 8.4" high-brightness color LCD display offers an easy-to-read depth sounding in various modes, permitting optimum representation with respect to the environment.
Providing mission critical data at your fingertips

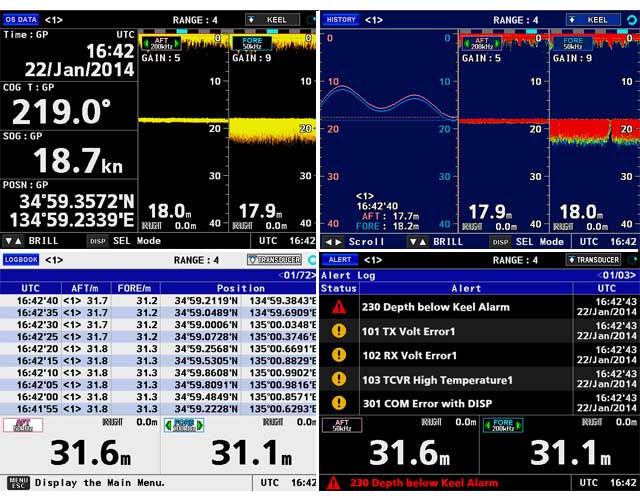

Own ship data: View your own ship data (OS Data) when the FE800 is connected to an external GPS Navigator.
History: Display a combination of contour and strata echo readings in preset intervals of 5 seconds, 1 minute, or 2 minutes.
Logbook: Display the stored time, depth, and own ship position. The logbook is capable of storing data for up to 720 log entries.
Alert log list: Displays up to 100 alerts stored in history.
- Standard Supply
- Option
- Mandatory
- Spares
| Name | Reference | Type | Short Description | ||
| FE-8010-E | 00002518200 | Standard Supply | DISPLAY UNIT | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| FE-8020 | 00002519300 | Standard Supply | TRANSCEIVER UNIT | ||
|
Stock available the
Please contact nearest dealer
|
|||||
Name
Reference
Type
Short Description
| Name | Reference | Type | Short Description | ||
| PP-505-FE | 00005589200 | PRINTER | PRINTER FOR ECHO SOUNDER | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 200B-8B/30M | 00001503400 | TRANSDUCER | The 200B-8B is a 200 kHz rubber transducer (1 or 2 kW) with a 30 m cable. | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| OP26-8 | 00001631300 | FIXING DEVICE | Bracket (RD50) | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 200B-8B/15M | 00001503200 | TRANSDUCER | The 200B-8B is a 200 kHz rubber transducer (1 or 2 kW) with a 15 m cable. | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| OP26-28 | 00124725000 | FIXING DEVICE | FRONT FIXING PANEL | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 200B-8B/50M | 00001503500 | TRANSDUCER | The 200B-8B is a 200 kHz rubber transducer (1 or 2 kW) with a 15 m cable. | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 50B-6B/30M | 00003835200 | TRANSDUCER | The 50B-6 is a 1 kW, 50 kHz transducer with a 28° beam angle, rubber-coated for chest, housing, or tank mounting, featuring a 30 m cable. | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 50B-6B/15M | 00003835800 | TRANSDUCER | The 50B-6 is a 1 kW, 50 kHz transducer with a 28° beam angle, rubber-coated for chest, housing, or tank mounting, featuring a 15 m cable. | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| IF-2503 | 00001010100 | INTERFACE | INTERFACE UNIT | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| IF-2550-IEC1 | 00003783100 | INTERFACE | INTERFACE UNIT | ||
|
Stock available the
Please contact nearest dealer
|
|||||
Name
Reference
Type
Short Description
| Name | Reference | Type | Short Description | ||
| TTF-2000 T-20 | 00001557800 | HULL UNIT | INTERIOR HULL UNIT | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| TTF-5600 T-20 | 00001557200 | HULL UNIT | INTERIOR HULL UNIT | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| MB-502-A | 00002545900 | TRANSDUCER ACCESSORY | MATCHING BOX | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 50B-6B *15M* | 00001504300 | TRANSDUCER | TRANSDUCER | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| MB-504-A | 00002546000 | TRANSDUCER ACCESSORY | MATCHING BOX | ||
|
Stock available the
Please contact nearest dealer
|
|||||
| 50B-6B *30M* | 00001501800 | TRANSDUCER | TRANSDUCER | ||
|
Stock available the
Please contact nearest dealer
|
|||||
Name
Reference
Type
Short Description
Download all the necessary documents
High-fidelity wireframes are often used for documenting because they incorporate.
Product Advantages

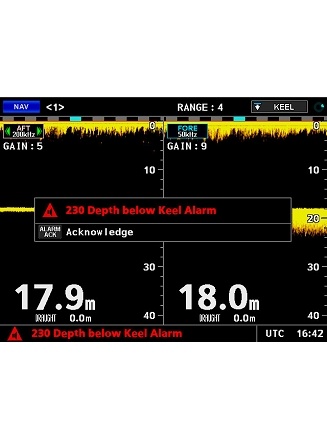

Dual frequency display(50/200 kHz) - The depth at the FORE and AFT positions can be displayed simultaneously when interfaced with two transducers
A variety of display modes are available: NAV, OS DATA, and HISTORY
High contrast 8.4" LCD
When interfaced with the Furuno remote display RD-20/50, depth information can be observed at a remote location
Optional printer interface is available for printing out the echogram
Connecting a PC with the optional data recording software allows you to store, compile, and print out the past data of the echogram via PC
BAM (Bridge Alert Management) ready**: Meets the specific requirements for alerts and interconnection with Bridge Alert Management in IMO MSC.302 (87) ** BAM capability is to be implemented as a software update after the product release in early 2015.
Depth data for the past 24 hours is storable in the internal memory
Visual and audible alerts
Features
| Feature | Description | Units | |||
| DISPLAY Colors | Echo: 8 colors / Background/Texts: 3 types (Black/White, Blue/White, White/Black) | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| DISPLAY Resolution | 640 x 480 | Pixels | |||
|
Stock available the
Please contact nearest dealer
|
|||||
| DISPLAY Size | 8.4 | " | |||
|
Stock available the
Please contact nearest dealer
|
|||||
| ECHO SOUNDER Accuracy | 0.5 m at 20 m range, 5 m at 200 m range, or 2.5% of depth range | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| ECHO SOUNDER Alarm | Shallow depth, Power Failure* *At the time of the power failure, FE-800 cannot generate visual/audible alarms. Please interface the equipment which can generate visual/audible alarms to FE-800. | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| ECHO SOUNDER Discrimination | more than 5 mm per meter depth on 20 m range / more than 0.5 mm per meter depth on 200 m range | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| ECHO SOUNDER Display modes | NAV, HISTORY, OS DATA | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| ECHO SOUNDER Output power | 1 k | W | |||
|
Stock available the
Please contact nearest dealer
|
|||||
| ECHO SOUNDER Picture advance speed | 15 minutes at 200 m range | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| ECHO SOUNDER Range scale | 8 steps / default: 5, 10, 20, 40, 100, 200, 400, 800 m | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| ECHO SOUNDER Roll/pitch tolerance | Roll: ±10° Pitch: ±5° | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| ECHO SOUNDER Transmit frequency | 50, 200, 50/50, 50/200, 200/200 | kHz | |||
|
Stock available the
Please contact nearest dealer
|
|||||
| ENVIRONMENT Relative humidity | 93% or less at +40℃ | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| ENVIRONMENT Temperature (IEC60945) | -15 to +55 | °C | |||
|
Stock available the
Please contact nearest dealer
|
|||||
| ENVIRONMENT Vibration | IEC 60945 Ed. 4 | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| ENVIRONMENT Waterproofing | 22 | IP | |||
|
Stock available the
Please contact nearest dealer
|
|||||
| INTERFACE Serial (IEC61162-2) (IEC61162-1) | IN: 2 / OUT: 4 | Port | |||
|
Stock available the
Please contact nearest dealer
|
|||||
| POWER Input | 100-230 | V | |||
|
Stock available the
Please contact nearest dealer
|
|||||
| PRODUCT Function | Auto Rprange, auto gain | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| PRODUCT Type | Navigational echosounder | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
| WHEELMARKED / IMO Compliant | Yes | ||||
|
Stock available the
Please contact nearest dealer
|
|||||
Feature
Description
Units
In the box
1 x FE-8010-E, display unit
1 x FE-8020, transceiver unit
1 x standard installation materials and spare parts
Notes:
Please order matching box, transducer, and tank additionally.
Matching box MB-502 (for 50B-6B) or MB-504 (for 200B-8B)
Transducer 50B-6B or 200B-8B
Interior hull unit TTF-2000 or TTF-5600
