REMOTE DISPLAY
Model FI-70
All your info... All in one, for powerboats and sailboats alike !
The instrument / data organizer 4.1", FI-70, features a 320×240 (QVGA) display, 700 cd/m² brightness, IPX6 waterproof rating, and NMEA2000 compatibility, and comes with a 6 m cable.
REF: IMD03413001
Bright, Customizable, and Easy to Use
The FI-70 instrument/data organizer sports a vibrant 4.1" bonded color display that is visible even in the harshest sunlight conditions. Utilizing the CAN bus network, external sensors can easily be connected for simple and reliable operation. The FI-70 features an easy-to-operate graphical user-interface. It allows you to customize almost every display property, allowing you to choose the information you want to be displayed, in the way you want to see it!

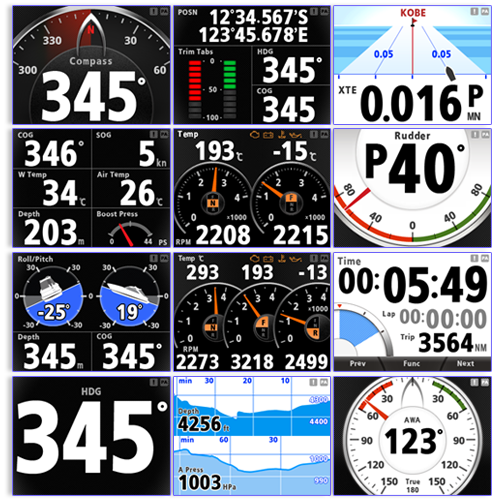

Exceptional User Interface and Customization
With the FI-70, nearly every aspect can be tailored to your preferences. Effortlessly select how information is displayed in the way that best suits your needs.
Comprehensive Satellite Compass™ Data
The FI-70 enables precise configuration of the SCX-20 and SC-33 Satellite Compass™, allowing you to input critical parameters such as the ship’s width, length, height, and exact antenna position. This ensures optimal performance and accuracy.
Additionally, the FI-70 serves as an advanced Satellite Compass™ indicator, capable of displaying 3-axis speed, including forward-aft movement, transverse motion at the bow, and transverse motion astern. This data can be presented in either graphical or numerical format, making it invaluable for monitoring vessel drift or evaluating detailed motion while at berth.
The display also provides heave data, showing the vessel’s vertical movement with a directional arrow and numerical value indicating the displacement.
Furthermore, the FI-70 can display real-time GPS satellite status, offering insight into the satellites that the SCX-20 and SC-33 rely on for operation.
| Name | Reference | Type | Short Description | ||
| OP26-29 |
00140877000 |
FIXING DEVICE | FRONT MOUNT KIT |
| |
| FI-50-CHAIN-5M |
00110584010 |
CABLE | CABLE ASSEMBLY 5M |
| |
| M12-05BM+05BF-010 |
00110575010 |
CABLE | CABLE ASSEMBLY |
| |
| FI-5001L |
00001572300 |

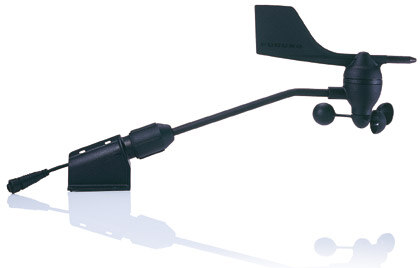

SENSOR | The FI-5001L is a wind sensor, analog, with 720 mm arm - for sailboots - without câble. |
| |
| FI-50-CHAIN-0.3M |
00110582010 |
CABLE | CABLE ASSEMBLY 0.3M |
| |
| FI-5002 |
00001076500 |
CONNECTOR | The FI-5002 is a NMEA2000 junction box, 12 V, 8 PORTS. |
| |
| IF-NMEAFI |
00002704700 |
INTERFACE | ANALOG NMEA DATA CONVERTER |
| |
| M12-05BM+05BF-020 |
00110576010 |
CABLE | CABLE ASSEMBLY |
| |
| FRU-0505-FF-IS |
00107783010 |
CONNECTOR | IN-LINE TERMINATOR |
| |
| M12-05BM+05BF-060 |
00110577010 |
CABLE | CABLE ASSEMBLY |
| |
| LTWMC-05BFFT-SL8001 |
00016860510 |
CONNECTOR | TERMINATION RESISTOR(MICRO) |
| |
| FI-5001 |
00001048200 |
SENSOR | FI-5001 is a wind sensor, analog, with 372 mm arm - for sailboots - without câble. |
| |
| FI-50-CHAIN-1M |
00110583010 |
CABLE | CABLE ASSEMBLY 1M |
| |
| CP26-00300(30M) |
00001051100 |
INSTALLATION MATERIALS | INSTALLATION MATERIALS |
| |
| CP26-00400(50M) |
00001061800 |
INSTALLATION MATERIALS | INSTALLATION MATERIALS |
| |
Name
Reference
Type
Short Description
00140877000
00110584010
00110575010
00001572300
00110582010
00002704700
00110576010
00107783010
00110577010
00016860510
00001048200
00110583010
00001051100
00001061800
| Name | Reference | Type | Short Description | ||
| LTWMC-05BMMT-SL8001 |
00016860410 |
Spares | TERMINATION RESISTOR(MICRO) |
| |
| NC-050505-FMF-TS001 |
00016050710 |
Spares | MINI/MICRO T-CONNECTOR |
| |
| LTWMN-05AMMT-SL8001 |
00016050810 |
Spares | TERMINATION RESISTOR(MINI) |
| |
| SS-050505-FMF-TS001 |
00016860310 |
Spares | MICRO T-CONNECTOR |
| |
Name
Reference
Type
Short Description
00016860410
00016050710
00016050810
00016860310
Download all the necessary documents
High-fidelity wireframes are often used for documenting because they incorporate.
Product Advantages
Beautiful 4.1" QVGA screen that is sunlight viewable
Simple and intuitive interface with full customizability
Day & Night mode for improved visibility
Designed to perfectly match the NavNet TZtouch and NAVpilot 711C on your helm station
With the new analog-NMEA2000 converter, IF-NMEAFI, you can still use your older analog sensors
Low power consumption (0.25 A max)
In the box
1 x display unit FI-70-E
1 x drop cable assembly M12-05BM+05BF-060
1 x flush mounting template
1 x installation material
1 x spring washer
1 x flat washer

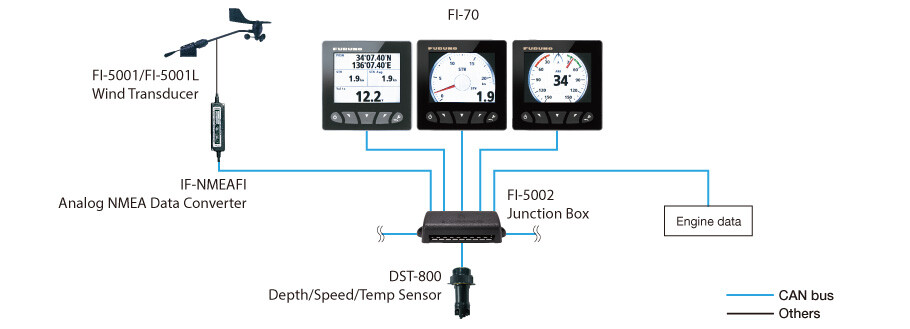

Interconnection diagrams
