FISH FINDER
Model FCV-1900
See underwater clearly and accurately with incredible high definition echoes!
The FCV-1900 is a black box high-resolution dual-frequency fish finder with 1-3 kW power output and a 28-200 kHz range, providing superior target detection and clarity.
REF: IMD02200000
See underwater with incredible high definition echoes
The FCV-1900 is a high-performance, dual-frequency fish finder designed for both commercial and sport fishing vessels. It offers a selectable transmitter power of 1 kW, 2 kW, or 3 kW and features Furuno’s free synthesizer (FFS) transceiver, enabling seamless selection of a wide operating frequency range from 15 kHz to 200 kHz.
Thanks to FFS technology, retrofitting is effortless: you can easily replace an older FCV-1200 processor unit while keeping the existing transducer for a hassle-free installation. Additionally, the FCV-1900 is designed for simplicity and ease of use, featuring an upgraded control unit with an intuitive, water-resistant touchpad. This touchpad remains fully functional even when wearing rubber gloves, allowing for quick and convenient adjustments of VRM and TLL settings.
Upgrade to FCV-1900B Hi-Res Fish Finder or FCV-1900G Fish size indicator
By purchasing and installing a software license, you can upgrade your FCV-1900 model to an FCV-1900B Hi-Res TruEcho CHIRP™ fish finder* or an FCV-1900G TruEcho CHIRP™ with a unique fish size indicator*. FCV-1900G offers a precise fish size histogram for accurate estimation of fish size and density of schools of fish. With a fish size histogram, targets can be properly evaluated, spelling increased efficiency and profitability. For further details, please contact your local Furuno national distributor.
*TruEcho CHIRP™ compatible transducer required.
More vivid details due to our increased transmission rate
Display up to four different frequencies
| Name | Reference | Type | Short Description | ||
| MU-190 |
IMD03308003 |
Connectable Product | 19" LCD Display IMO for Radar and ECDIS |
| |
| T-04MTB |
00002689400 |
SENSOR | TEMPERATURE SENSOR |
| |
| TFB-7000(2) |
00001520900 |
TRANSDUCER | THRU-HULL PIPE |
| |
| MU-231 |
IMD03310003 |
Connectable Product | MONITOR UNIT |
| |
| HDMI-TO-DVI-L=5.3M |
00140718000 |
CABLE | CABLE ASSEMBLY |
| |
| 50B-6B *30M* |
00001501800 |
TRANSDUCER | TRANSDUCER |
| |
| FR-FTPC-CY *30M* |
00124053000 |
CABLE | LAN CABLE (4 PAIR) |
| |
| BT-5-1 |
00001252000 |
MATCHING BOX | BOOSTER BOX |
| |
| 50BL-24HR |
00001509400 |
TRANSDUCER | The 50BL-24HR is a 3 kW, 50 kHz Fiber Reinforced Plastic (FRP) transducer with a 9 x 14° directional pattern and a 15 m cable (no connector). |
| |
| 28F-72 *15M* |
00001500700 |
TRANSDUCER | TRANSDUCER |
| |
| PR-240 |
00001363200 |
POWER SUPPLY | AC/DC POWER SUPPLY UNIT |
| |
| 200B-12H |
00001506900 |
TRANSDUCER | The 200B-12H is a 5 kW, 200 kHz rubber-coated transducer with a 4° beam angle, designed for tank mounting, and featuring a 15 m cable without a connector. |
| |
| A-TO-D-ADAPTER |
00140716000 |
CABLE | CABLE ASSEMBLY |
| |
| 88B-10 |
00001502500 |
TRANSDUCER | The 88B-10 is a 2 kW, 88 kHz rubber-coated, tank-mounted transducer with an 8° beam angle, 15 m cable (no connector). |
| |
| 50BL-12HR |
00001509300 |
TRANSDUCER | The 50BL-12HR is a 2 kW, 50 kHz Fiber Reinforced Plastic (FRP) transducer with a 14 x 18.5° directional pattern and a 15 m cable (no connector). |
| |
| 28F-38M *30M* |
00001500600 |
TRANSDUCER | TRANSDUCER |
| |
| T-04MSB |
00002689300 |
SENSOR | TEMPERATURE SENSOR |
| |
| 38BL-9HR |
00001508300 |
TRANSDUCER | The 38BL-9HR is a 38 kHz FRP transducer with 2 kW power, a 20.5° x 20.5° directional pattern, and a 15 m cable (no connector). |
| |
| 200B-8B/15M |
00001503200 |
TRANSDUCER | The 200B-8B is a 200 kHz rubber transducer (1 or 2 kW) with a 15 m cable. |
| |
| TFB-5000(1) |
00001520600 |
TRANSDUCER | THRU-HULL PIPE |
| |
| 28BL-12HR |
00001508200 |
TRANSDUCER | The 28BL-12HR is a high-performance 28 kHz rubber-coated transducer (1 or 2 kW) with a 15 m cable. |
| |
| 50F-38 15M |
00001500900 |
TRANSDUCER | TRANSDUCER |
| |
| 88B-8 |
00001502400 |
TRANSDUCER | The 88B-8 is a 1 kW, 88 kHz rubber-coated transducer with an 11° beam angle, suitable for housing or tank mounting, featuring a 15 m cable (no connector) and weighing 4.1 kg. |
| |
| 50B-6B *15M* |
00001504300 |
TRANSDUCER | TRANSDUCER |
| |
| FR-FTPC-CY *10M* |
00124051000 |
CABLE | LAN CABLE (4 PAIR) |
| |
| FR-FTPC-CY *20M* |
00124052000 |
CABLE | LAN CABLE (4 PAIR) |
| |
| 50BL-24H |
00001504000 |
TRANSDUCER | TRANSDUCER |
| |
| 50B-9B *15M* |
00001506500 |
TRANSDUCER | TRANSDUCER |
| |
| 200B-5S *10M* |
00001502900 |
TRANSDUCER | TRANSDUCER |
| |
| 28BL-6HR |
00001508100 |
TRANSDUCER | The 28BL-6HR transducer is a 28 kHz plastic unit with a 15 m cable. |
| |
| MU-150HD |
IMD03219002 |
Connectable Product | 15" LCD Display High Bright |
| |
| 200B-8B/30M |
00001503400 |
TRANSDUCER | The 200B-8B is a 200 kHz rubber transducer (1 or 2 kW) with a 30 m cable. |
| |
| 28F-8 *15M* |
00001500300 |
TRANSDUCER | TRANSDUCER |
| |
| 50/200-1T (RUBBER) |
00001517000 |
TRANSDUCER | DUAL FREQ. TRANSDUCER |
| |
| BT-5-2 |
00001252100 |
MATCHING BOX | BOOSTER BOX |
| |
| 82B-35R |
00001508700 |
TRANSDUCER | The 82B-35R is a 2 kW FRP transducer with a selectable frequency range of 65 kHz to 110 kHz, featuring a durable tank-mounted design with a 15 m cable (no connector provided). |
| |
| TWB-6000(2) |
00001520700 |
TRANSDUCER | THRU-HULL PIPE |
| |
| MJ-A6SPF0003-020C |
00015402910 |
CABLE | CABLE ASSEMBLY |
| |
| 50B-6 *10M* |
00001504200 |
TRANSDUCER | TRANSDUCER |
| |
| MOD-Z072-100+ |
00116790010 |
CABLE | LAN CABLE ASSEMBLY |
| |
| RU-1746B2 (CHINA) |
00003043900 |
POWER SUPPLY | RECTIFIER UNIT |
| |
| 200B-8B/50M |
00001503500 |
TRANSDUCER | The 200B-8B is a 200 kHz rubber transducer (1 or 2 kW) with a 15 m cable. |
| |
| CM265LHG |
00002253100 |
TRANSDUCER | TRANSDUCER |
| |
| MU-190HD |
IMD03220002 |
Connectable Product | 19" LCD Display High Bright |
| |
| MOD-Z072-050+ |
00116789010 |
CABLE | LAN CABLE ASSEMBLY |
| |
| MOD-Z072-020+ |
00116788010 |
CABLE | LAN CABLE ASSEMBLY |
| |
| MJ-A6SPF0003-050C |
00015405410 |
CABLE | Data cable (6PF<->Nu) 5m |
| |
| MJ-A7SPF0007-050C |
00015402810 |
CABLE | MJ-A7SPF0007-050C |
| |
| 100B-10R |
00002743800 |
TRANSDUCER | The 100B-10R is a 3 kW rubber-coated transducer operating at 107 kHz, with a beam angle of 8° x 13°, designed for external installation. |
| |
| 50/200-1T |
00003835000 |
TRANSDUCER | The 50/200-1T is a 1 kW rubber-coated transducer with dual-frequency (50/200 kHz), 28°/8.5° beam angles, designed for chest, housing, or tank mounting, and includes a 10 m cable (no connector). |
| |
| CM265LM |
00002740300 |
TRANSDUCER | The CM265LM is a 1 kW urethane in-hull CHIRP transducer with beam angles of 25° x 16° and 16° x 11°, delivering precise sonar performance across 42–65 kHz and 85–135 kHz frequency ranges. |
| |
| PM111LH/G |
00002740400 |
TRANSDUCER | The PM111LH/G is a 2 kW CHIRP transducer with a urethane housing, designed for tank, cavity, or pocket mounting, covering 38–75 kHz and 130–210 kHz for deep-water precision and high-resolution target detection. |
| |
| HDMI-TO-DVI-A-L5.3M |
00159467000 |
CABLE | CBL FOR EXTERNAL MONITOR |
| |
| PM111LM |
00002740500 |
TRANSDUCER | The PM111LM is a 2 kW CHIRP transducer in a durable urethane housing, covering 30–60 kHz (19°–10° beam) and 80–130 kHz (13°–8° beam) with integrated elements and 12-meter cables for powerful, precise sonar performance. |
| |
| HUB-101 |
00001176200 |
CONNECTOR | HUB101 Hub Ethernet 8 ports 12-24Vcc Navnet (Fonction Power Synchronisation) |
| |
| HDMI-TO-DVI-A-L10.3M |
00159466000 |
CABLE | CABLE ASSEMBLY |
| |
| RNS-08-132 |
00110754010 |
FIXING DEVICE | CABLE ASSEMBLY |
| |
| MJ-A6SPF0003-100C |
00016892410 |
CABLE | SIGNAL CABLE ASSEMBLY |
| |
| 50B-6B/15M |
00003835800 |
TRANSDUCER | The 50B-6 is a 1 kW, 50 kHz transducer with a 28° beam angle, rubber-coated for chest, housing, or tank mounting, featuring a 15 m cable. |
| |
| CM599LH/G |
00002740600 |
TRANSDUCER | The CM599LHG is a 3 kW in-hull CHIRP transducer with a urethane housing, offering frequencies of 28-60 kHz (23° x 9° beam) and 130-210 kHz (11° x 5° and 8° x 4° beams) for precise fish detection and superior sonar performance. |
| |
| HDMI-TO-DVI-A-L10.3M |
00147144000 |
CABLE | CBL FOR EXTERNAL MONITOR |
| |
| CM275LHW |
00002740800 |
TRANSDUCER | The CM275LHW is a 1 kW urethane in-hull CHIRP transducer with wide beam angles (25° x 16° and 25°), covering 42–65 kHz and 150–250 kHz for exceptional broadband sonar performance. |
| |
| 150B-12H |
00001507400 |
TRANSDUCER | The 150B-12H is a 3 kW rubber-coated transducer operating at 150 kHz, designed for precise underwater detection in various marine environments. |
| |
| 50B-6/10M |
00003835100 |
TRANSDUCER | The 50B-6 is a 1 kW, 50 kHz transducer with a 28° beam angle, rubber-coated for chest, housing, or tank mounting, featuring a 10 m cable (no connector) and compatibility also with a 75 kHz frequency setting. |
| |
| MJ-A6SPF0003-150C |
00015964310 |
CABLE | SIGNAL CABLE ASSEMBLY |
| |
| 200B-5S |
00003834800 |
TRANSDUCER | The 200B-5S is a high-performance 200 kHz transducer designed for precise depth detection and fish-finding applications. |
| |
| 50B-6B/30M |
00003835200 |
TRANSDUCER | The 50B-6 is a 1 kW, 50 kHz transducer with a 28° beam angle, rubber-coated for chest, housing, or tank mounting, featuring a 30 m cable. |
| |
| MJ-A6SPF0003-150C |
00159608000 |
CABLE | SIGNAL CABLE ASSEMBLY |
| |
| HDMI-TO-DVI-L=10.3M |
00140717000 |
CABLE | CABLE ASSEMBLY |
| |
| PR-241 |
00003782000 |
POWER SUPPLY | AC/DC POWER SUPPLY UNIT |
| |
| 38BL-15HR |
00001509200 |
TRANSDUCER | The 38BL-15HR is a 38 kHz, 3 kW, FRP transducer with a 12.5° x 21° beam pattern, and a 15 m cable (no connector). |
| |
| 50B-9B |
00003835400 |
TRANSDUCER | The 50B-9B is a 1 kW, 50 kHz rubber-coated transducer with a 12° x 28° beam angle and a 15 m cable (no connector provided). |
| |
| CM599LM |
00002740700 |
TRANSDUCER | The CM599LM is a 3 kW in-hull CHIRP transducer with a durable urethane housing, covering 28-60 kHz (23° x 9° beam) and 80-130 kHz (11° x 5° and 13° x 8° beams) for exceptional sonar performance and precise fish detection. |
| |
Name
Reference
Type
Short Description
IMD03308003
00002689400
00001520900
IMD03310003
00140718000
00001501800
00124053000
00001252000
00001509400
00001500700
00001363200
00001506900
00140716000
00001502500
00001509300
00001500600
00002689300
00001508300
00001503200
00001520600
00001508200
00001500900
00001502400
00001504300
00124051000
00124052000
00001504000
00001506500
00001502900
IMD03219002
00001503400
00001500300
00001517000
00001252100
00001508700
00001520700
00015402910
00001504200
00116790010
00003043900
00001503500
00002253100
IMD03220002
00116789010
00116788010
00015405410
00015402810
00002743800
00003835000
00002740300
00002740400
00159467000
00002740500
00001176200
00159466000
00110754010
00016892410
00003835800
00002740600
00147144000
00002740800
00001507400
00003835100
00015964310
00003834800
00003835200
00159608000
00140717000
00003782000
00001509200
00003835400
00002740700
| Name | Reference | Type | Short Description | ||
| TPB-9000(1) |
00001521300 |
Spares | THRU-HULL PIPE |
| |
| 02P6392(LF) CTRL |
00141880000 |
Spares | PRINTED CIRCUIT BOARD |
| |
| 19P1084A(LF) MAIN |
00141878000 |
Spares | PRINTED CIRCUIT BOARD |
| |
Name
Reference
Type
Short Description
00001521300
00141880000
00141878000
Download all the necessary documents
High-fidelity wireframes are often used for documenting because they incorporate.
Product Advantages
With a transmission rate that has been increased by up to 1.4 times (200 m range), FCV-1900 ensures excellent target separation and clarity
Display up to four different frequencies
Simultaneous gain setting for increased visibility
Zero line rejection
Capture and review videos and screenshots
Improved control unit for simple and intuitive operation
Scroll back function
Furuno free synthesizer transceiver for adjustable operating frequency
Upgrade to FCV-1900B Hi-Res fish finder or FCV-1900G fish size indicator
In the box
1 x processor unit FCV-1901-E
1 x control unit FCV-1902-E
1 x standard installation materials and spare parts
Notes:
Do not include hull unit. add the cost of transducer/THP/tank.
Output power (1/2/3kW) and frequencies (two from 15/28/38/50/88/107/200kHz) can be selected via menu.
For FCV-1900B and FCV-1900G, the upgrade key is required.

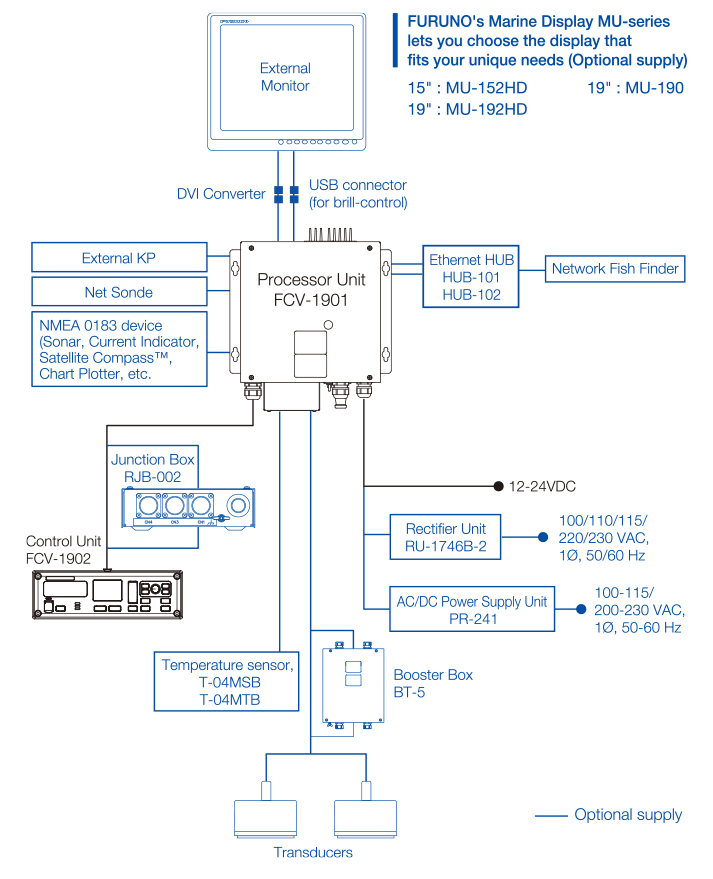

Interconnection diagrams
